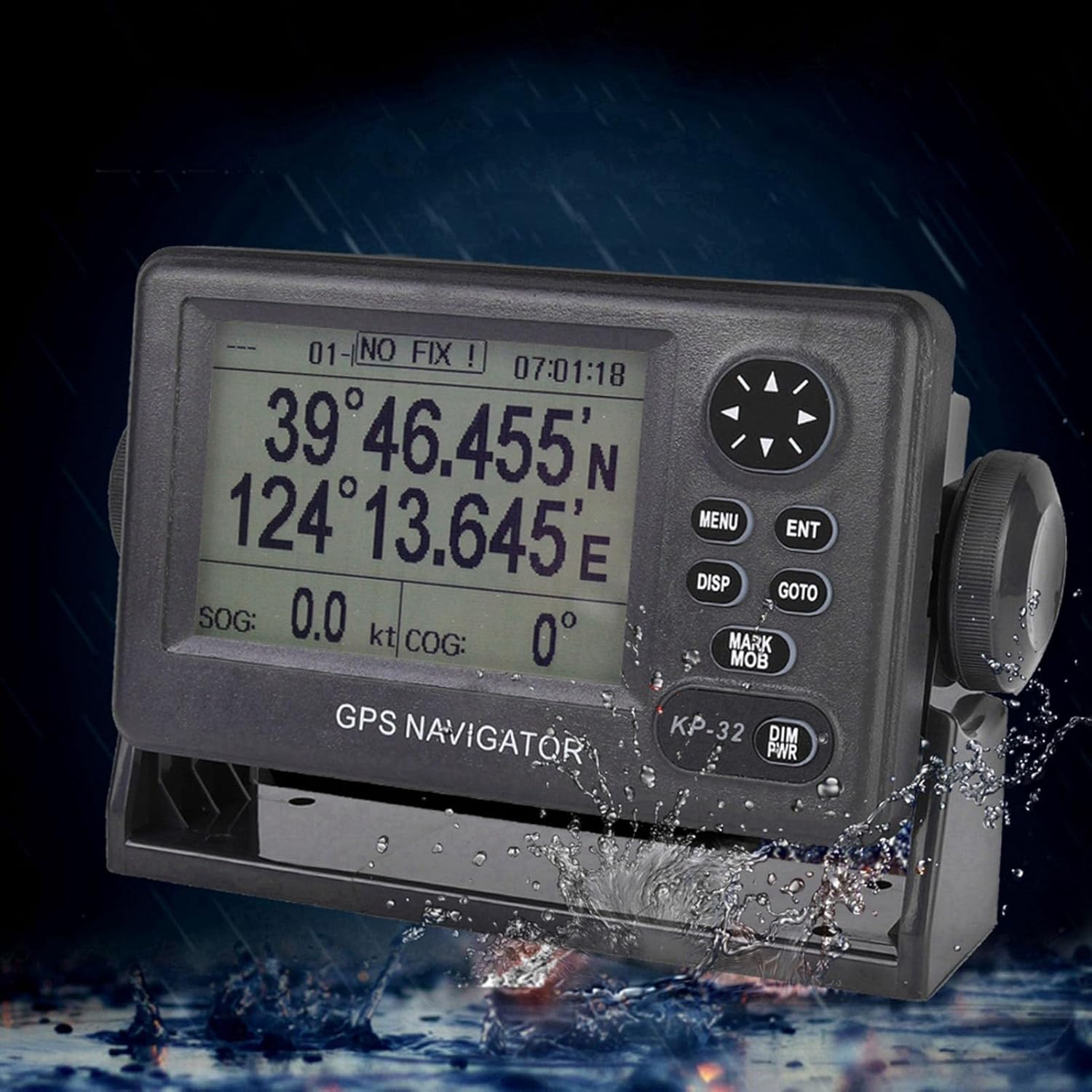

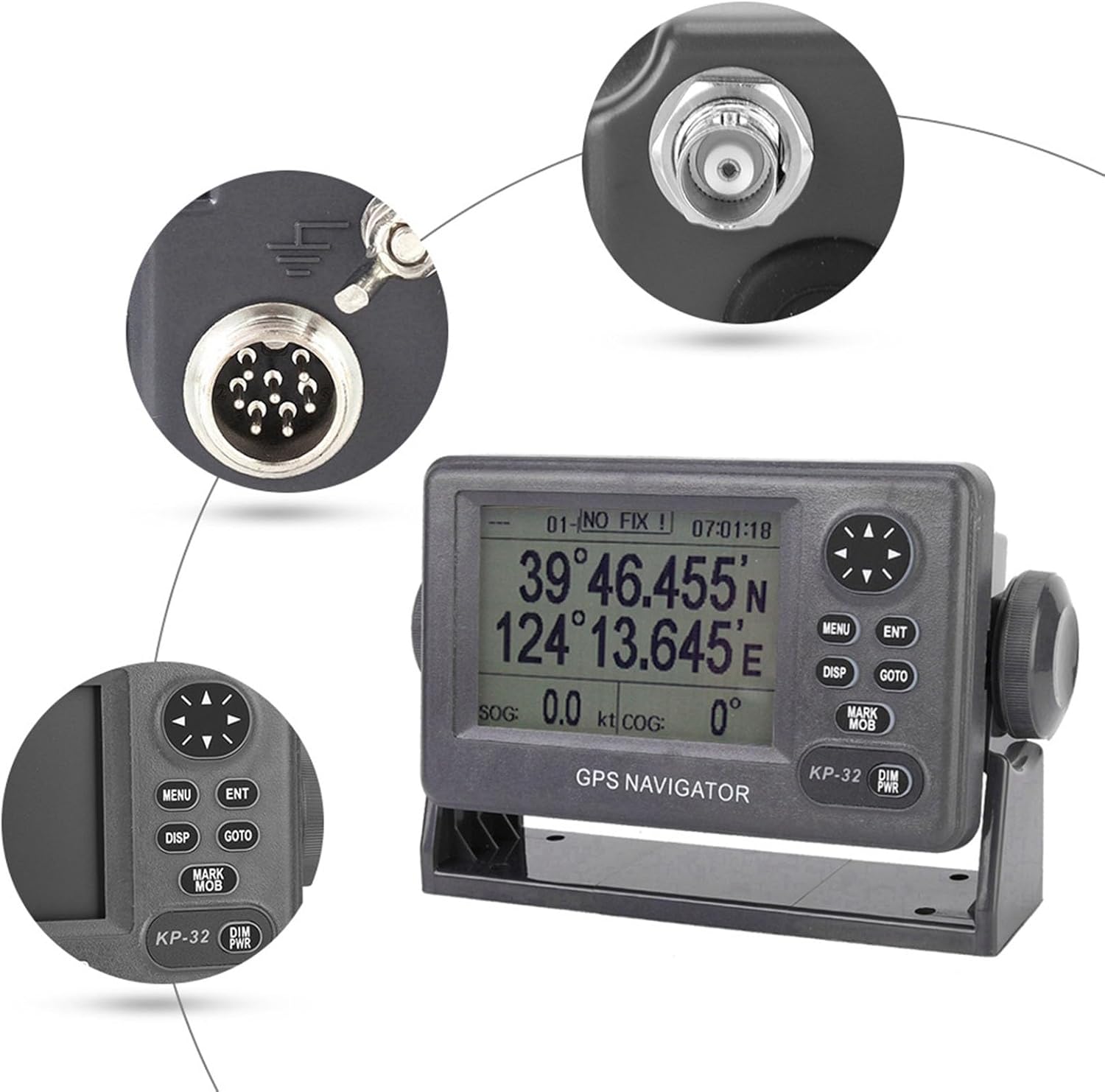

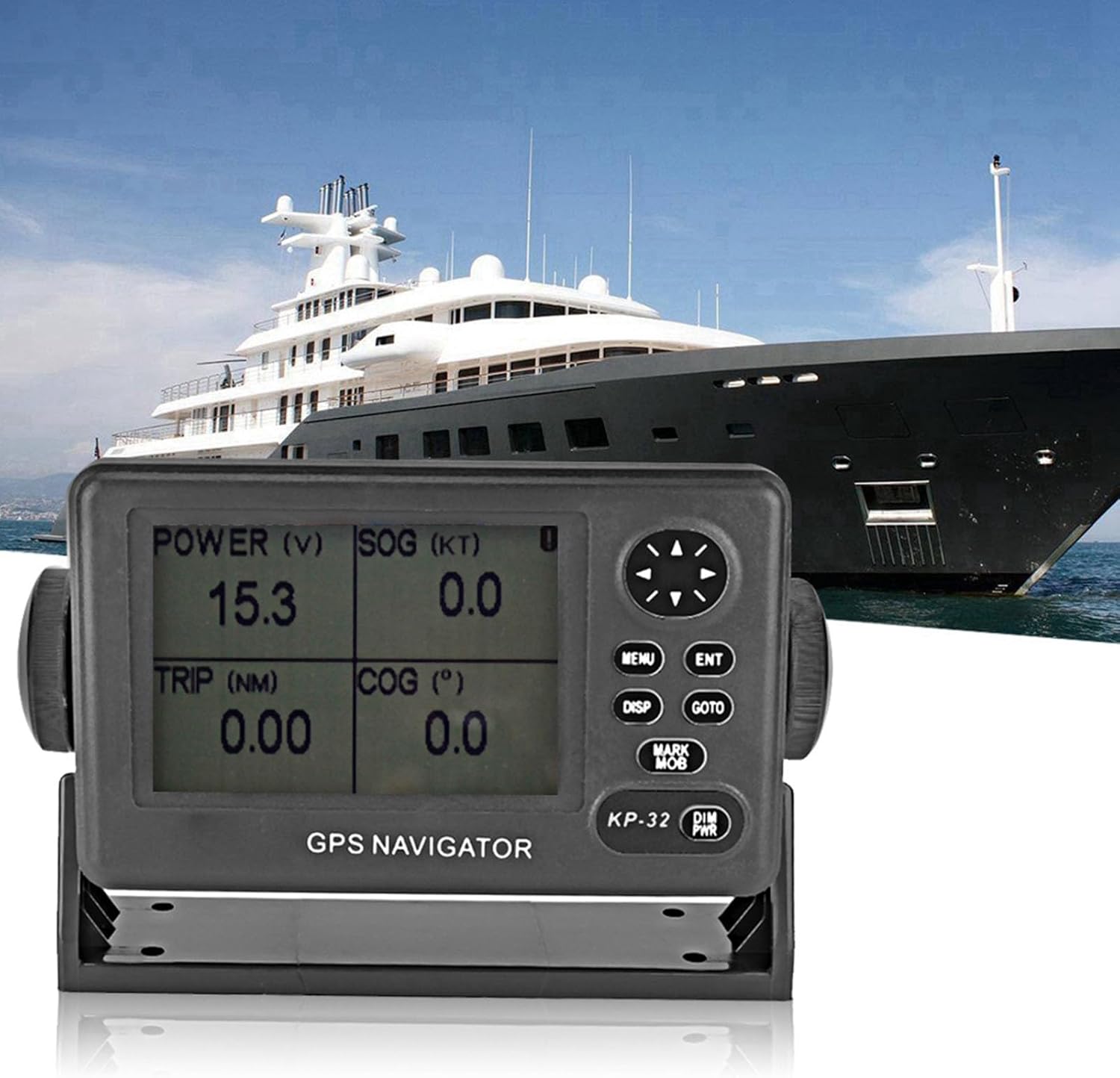

Navigation Positioner, 4.5 LCD Display Marine Navigator Navigation Locator for Boat

Condition: 100% Brand New

Item Type: Marine Navigator

Receiver GPS: 12 channels, C/A code, all-in-view. SBAS receiver.

Acceptance Frequency: L1 (1575.42 Mhz)

Positioning Time: Average 15 seconds (hot start)

Positioning Rate: 999 knots

Chart Basis: WGS-84

Accuracy:

GPS 15m (95%)

SBAS (95%)

Display: 4.5 diagonal 95(W) x 63(H) mm LCD, 240 x 160 pixels

Display Mode: Chart, high speed, yaw, speedometer, satellite data and 2 pages of custom display

Memory Space: 2,500 tracks, 999 waypoints, 50 route memories, 30 route points per day

Languages: Chinese, English, Indonesian, Vietnamese, French

Interface:

Output (NMEA 0183 ver 2.0)

AAM, APB, BOD, BWC, GGA, GLL, RMB, RMC, VTG, XTE, ZDA

Ambient Temperature:

Display: -15°C to +55°C

Antenna Unit: -25°C to +70°C

Waterproof:

Display: IPX5

Antenna: IPX6

Power Supply: 12-24 VDC, 240-120mA

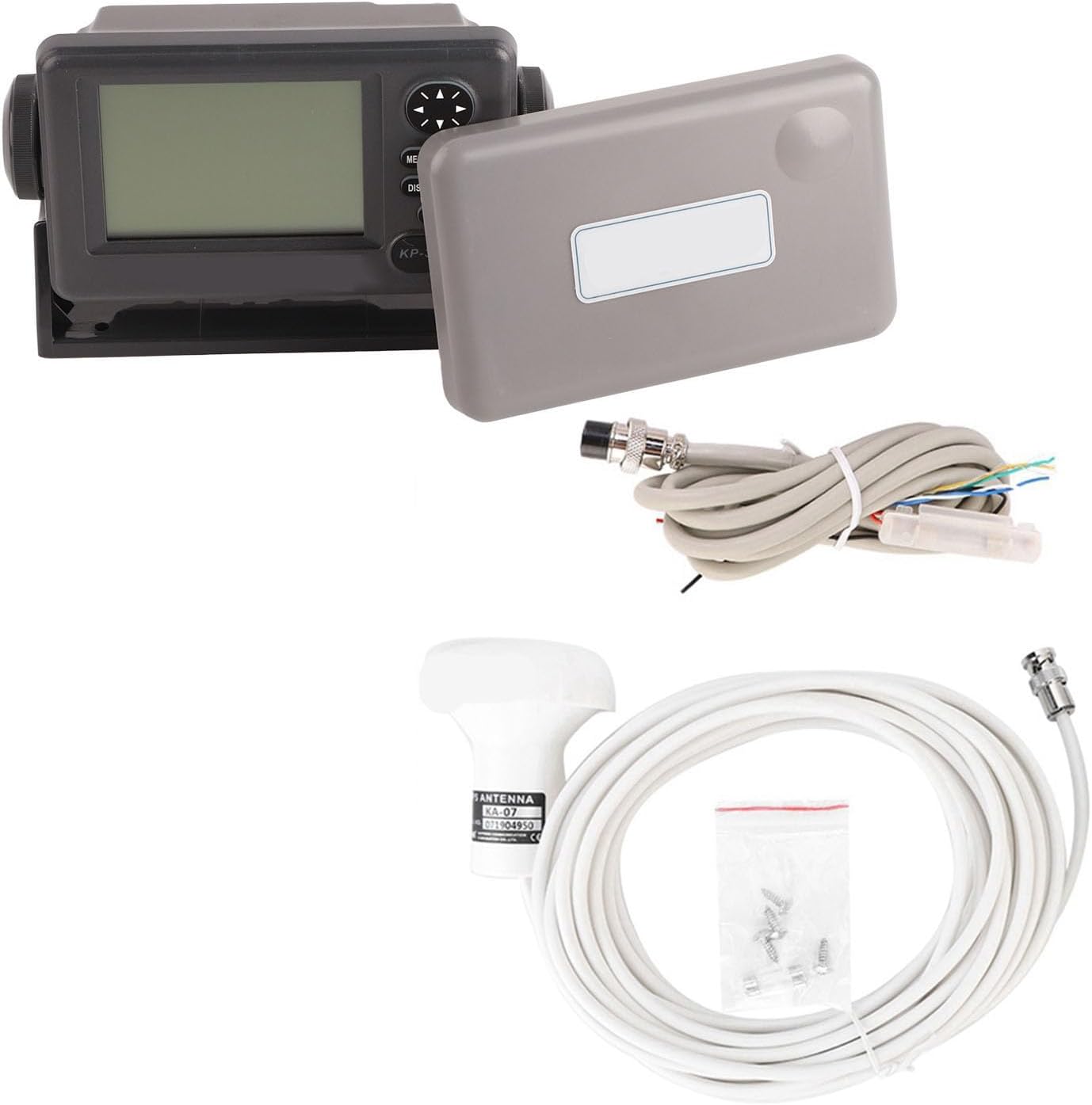

Package List:

1 x GPS Navigator；

1 x GPS Antenna；

1 x Six-Core Cable；

1 x Navigator Protective Case；

1 x Screw Kit

Precautions:

1. For all marine equipment, the positive and negative poles of the electric power cannot be connected incorrectly.

2. The radar antenna must not be occluded. Can not be installed on a horizontal line with satellite phones.

3. Do not launch the radar without the antenna.

Marine GPS Navigation Locator?Yctze ONWA KP-32 GPS/SBAS Marine Navigator 4.5 inch LCD Display GPS Navigation Locator
