Radiolink A560 PNP (Plug&Play) RC 3D Airplane & AT10II 12 Channels RC Transmitter and R12DS Receiver, Left Hand Throttle Radio, CM210 2S LiPo Fast Charger Kit, Totally RTF

Production based on information technology, manufacturing, and automatic instrument testing. We can provide high-quality, diversified, and competitive technological products to our users.

*Frequently Asked Questions and User Manual documents can be found sales page.

* To fully enjoy the benefits of this product and ensure safety, please read the user manual carefully and set up the device as instructed steps.

Specification:

Byme-a: 4 Channels

Body Length: 560 mm / 22 inch

Wing Span: 580 mm / 22.8 inch

Height: 180 mm / 7 inch

Airplane Batteries Charging Time: about 20 minutes

Fly Time: level flight about 20 minutes*2 or vertical mode about 10 minutes *2 (2 batteries)

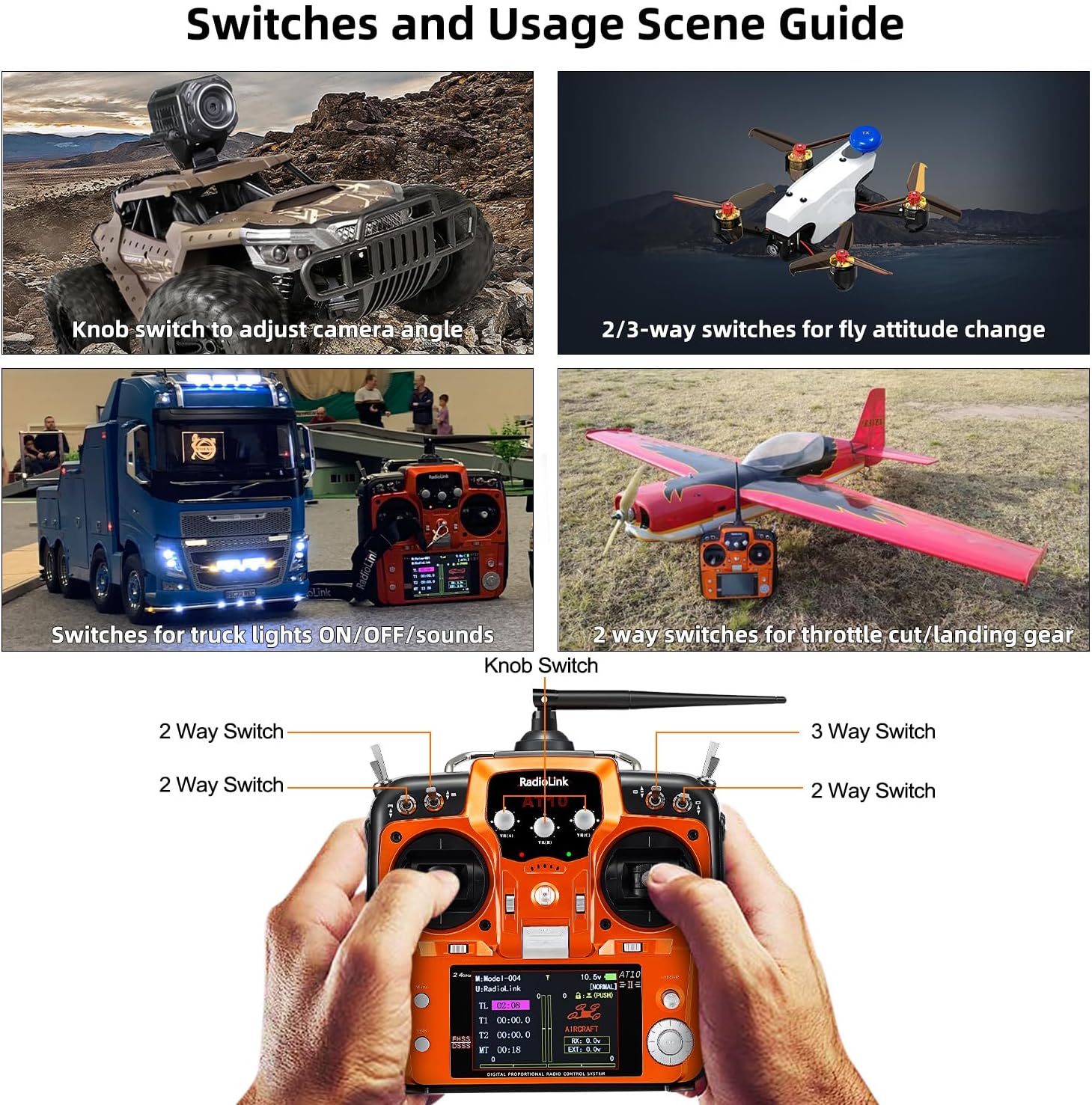

With 3 of VR switches, 3 of three-way position switches, 4 of two-way position switches, 1 of reset trainer switch. All 12 channels can be customized to any switch, easy to switch flight modes.

Stabilize Mode with gyro assisting to balance airplane. The model attitude (inclination angles) is controlled by joysticks.

When the joystick is back to the central point, A560 will return to level automatically. Recommend for beginners to practice level flight.

Powerful and efficient brushless power system including a 15AFLYCOLOR ESC and GENFAN propeller.

The propeller uses polycarbonate and is collision-resistant. Propeller rotary balanced with small vibration and stable flight in Acrobatic Mode.

• Voltage Telemetry Include Real-time airplane voltage monitor on AT10II screen when paired with voltage telemetry module PRM-01(package included). To telemetry flight information on the radio's screen like battery voltage, speed, altitude, RSSI, yaw roll, and more, AT10II should be equipped with a PRM-03 module and flight controller APM, Pixhawk, Mini Pix, Turbo Pix.
• Programmable Mix Control: Easy to understand graph view, 5-12 channels can be programmed to any advanced setting. An Airbrake can be programmed by using pre-programmed mixes. Multi-servo elevator mixing for Flying Wings or V-shaped tail models.
• Friendly Remind: Low RSSI, low voltage, and throttle position alarm, with DD sounds and words remind you on outdoor readable LCD screen.
• Channel Servo Travel Display: Each channel travel can be displayed on the radio screen, press EXIT from the home page to this page.
• Screen Background Switch: Support white or black screen background change, and backlight brightness is adjustable.

What makes our products unique?

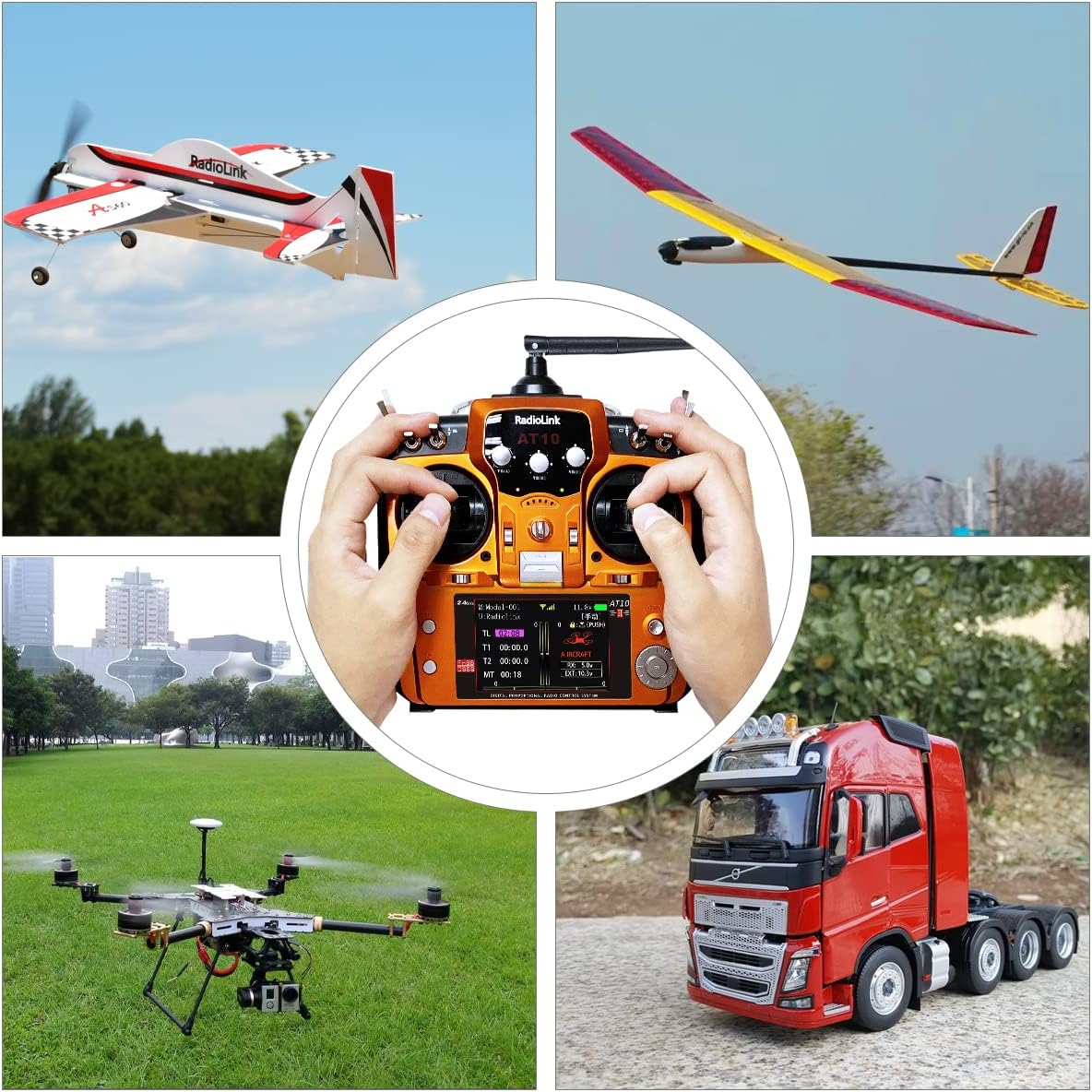

Radiolink AT10II 12 Channels Radio

Stabilize Mode

Efficient Power System
