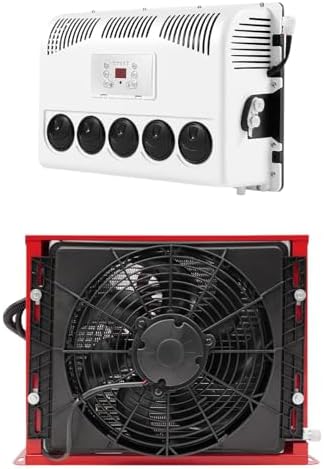

12V 11000 BTU Mini Split Air Conditioner Kit with Controller 2200-2400W Cooling Capacity Mini Split AC System for Trucks, Caravans, RVs, 8828.68-15891.6ft³/h Air Volume, Only Cooling

Specification

Applicable: Universal

Material: Iron, Plastic, Aluminum

Color: Red, White

Voltage: 12V

BTU: 11000

Mounting Style: Screw-On

Type: Split AC Air Conditioner

Power: 400-600W

Cooling Capacity: 2200-2400W

Rated Current: 30-50A

Air Volume: 250-450m³/8828.68-15891.6ft³/h

Refrigerating Fluid Type: R134A

Refrigerating Fluid Volume: 600g

Refrigeration Oil: POE68

Control Method: Controller Control

Battery: 2*AAA Batteries

Motor Type: Pure Copper Wire Motor

Under Voltage Protection: ＜11V

External Unit

External Unit Size: 47*28*38cm/18.5*11.02*14.96inch

External Unit Package Size: 60*34*44cm/23.62*13.38*17.32inch

External Unit Gross Weight: 21kg/46.29lbs

Internal Unit

Internal Unit Size: 43*14*29cm/16.92*5.51*11.41inch

Internal Unit Packaging Size: 56*34*17cm/22.04*13.38*6.69inch

Internal Unit Gross Weight: 7kg/15.43lbs

Notes

1.We may send the air conditioner internal unit and external unit separately, please wait patiently for all parts to arrive.

2.600g R134A is required to be charged into the air conditioner. If you think 600g is not enough and want to make the machine make cooler air, you may charge more R134A, and the max is 750g.

3.When the battery (100Ah) is fully charged, this product can be used for 1-3 hours after parking. The actual usage time is based on the degree of freshness and capacity of the battery.

4.We strongly recommend professional installation.

5.Please allow for slight color differences caused by shooting light and errors caused by manual measurement, and make sure you don't mind before ordering. If you have any questions, please contact us, and we will reply and solve your problem as soon as possible.

Fits (As a Reference)

Fits for Universal(Caravans, RVs, etc.)

Package Included(Internal Unit)

1* Air Conditioning Outer Machine

1* Signal Line

1* Battery Cable

1* Low-pressure Pipe

1* High-pressure Pipe

All Accessories for Installation

Package Included(External Unit)

1* Air Conditioning Outer Machine

1* Signal Line

1* Battery Cable

1* Low-pressure Pipe

1* High-pressure Pipe

All Accessories for Installation
