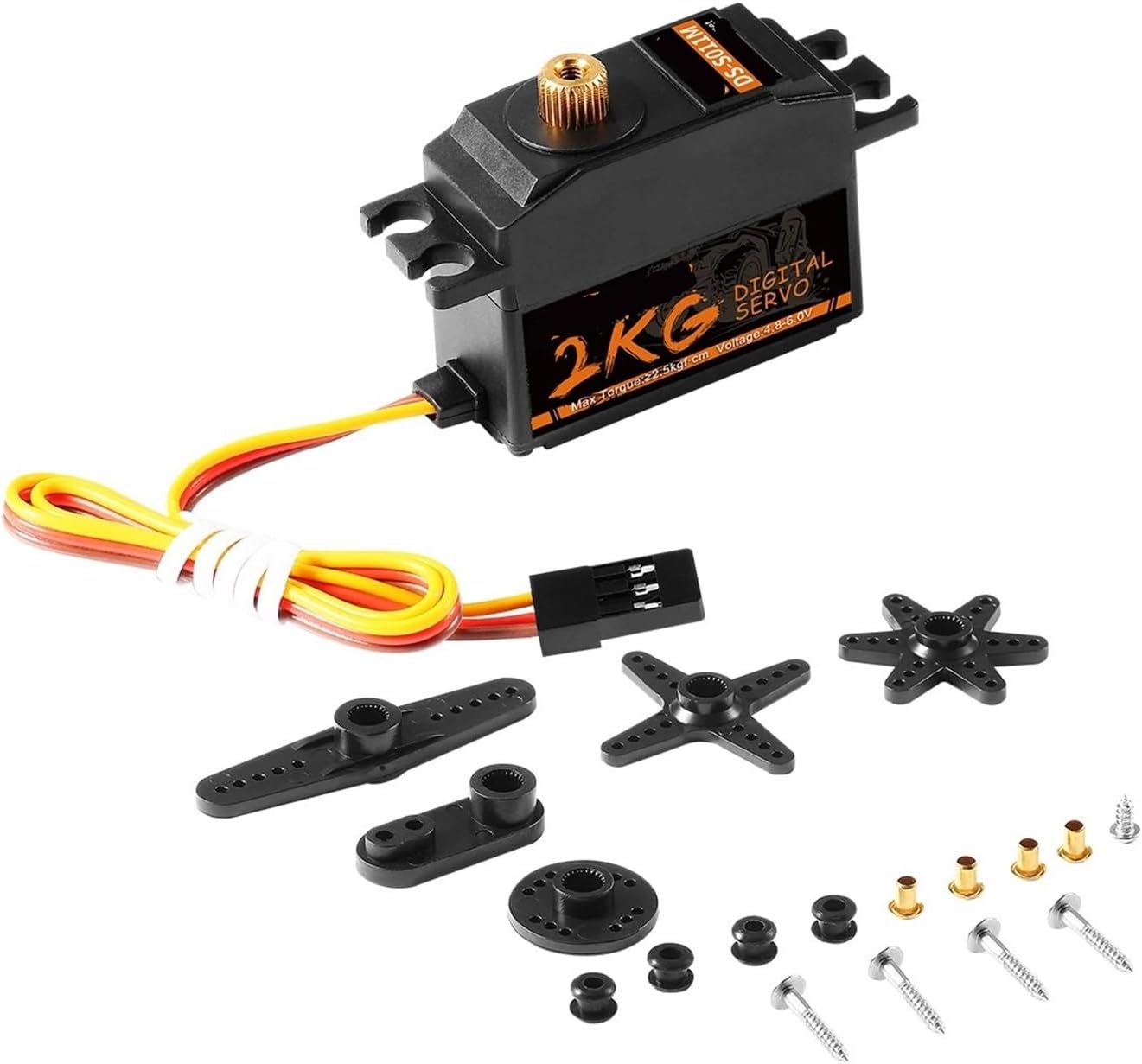

Home / 1/5/10/20pcs 2KG Metal Gear Digital servo Waterproof Suitable for 144001 12428 124018 Mn99s Mn86 1/12(20PCS Plastic 2KG)
  • 1/5/10/20pcs 2KG Metal Gear Digital servo Waterproof Suitable for 144001 12428 124018 Mn99s Mn86 1/12(20PCS Plastic 2KG)
  • 1/5/10/20pcs 2KG Metal Gear Digital servo Waterproof Suitable for 144001 12428 124018 Mn99s Mn86 1/12(20PCS Plastic 2KG)
  • 1/5/10/20pcs 2KG Metal Gear Digital servo Waterproof Suitable for 144001 12428 124018 Mn99s Mn86 1/12(20PCS Plastic 2KG)

1/5/10/20pcs 2KG Metal Gear Digital servo Waterproof Suitable for 144001 12428 124018 Mn99s Mn86 1/12(20PCS Plastic 2KG)

$167.91
$198.18
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Servos
    Plastic gear version:
    Specification:
    Product Name: S011
    Quantity: 1/5/10/20 pieces
    Working voltage: 4.8~6.0V DC
    Maximum torque: 4.8V2.5kgf.cm; 6.0V3.5kgf.cm
    No-load speed: 4.8V0.16s/60°; 6.0V0.14s/60°
    Stall current: 4.8V 1200mA; 6.0V1800mA
    Current consumption* (no load): 4.8V 50mA; 6.0V70mA
    Maximum operating travel angle: 180°±10° (500~2500 us)
    Dead zone width: 5us
    Mechanical limit angle: 360°
    Communication interface: PWM
    Motor type: Iron core motor
    Case material: ABS
    Gear set material: plastic gear
    Weight: 21 g
    Dimensions: 42.3×15.4×32.1mm
    Cable length: JR 250MM±5mm
    Package Included:
    1/5/10/20 * 2KG digital servo
    1/5/10/20 * Servo arm accessories
    Metal Gear Solid Version:
    Specification:
    Product Name: S011M
    Quantity: 1/5/10/20 pieces
    Working voltage: 4.8~6.0V DC
    Maximum torque: 4.8~5.0kgf.cm; 6.0~6.5kgf.cm
    No-load speed: 4.8V0.16s/60°; 6.0V0.14s/60°
    Stall current: 4.8V 1900mA; 6.0V2500mA
    Current consumption* (no load): 4.8V 120mA; 6.0V 130mA
    Maximum operating travel angle: 180°±10° (500~2500 us)
    Dead zone width: 5us
    Mechanical limit angle: 360°
    Communication interface: PWM
    Motor type: Iron core motor
    Case material: ABS
    Gear set material: metal gear
    Weight: 21 g
    Dimensions: 42.3×15.4×32.1mm
    Cable length: JR 250MM±5mm
    Package Included:
    1/5/10/20 * 2KG digital servo
    1/5/10/20 * Servo arm accessories
