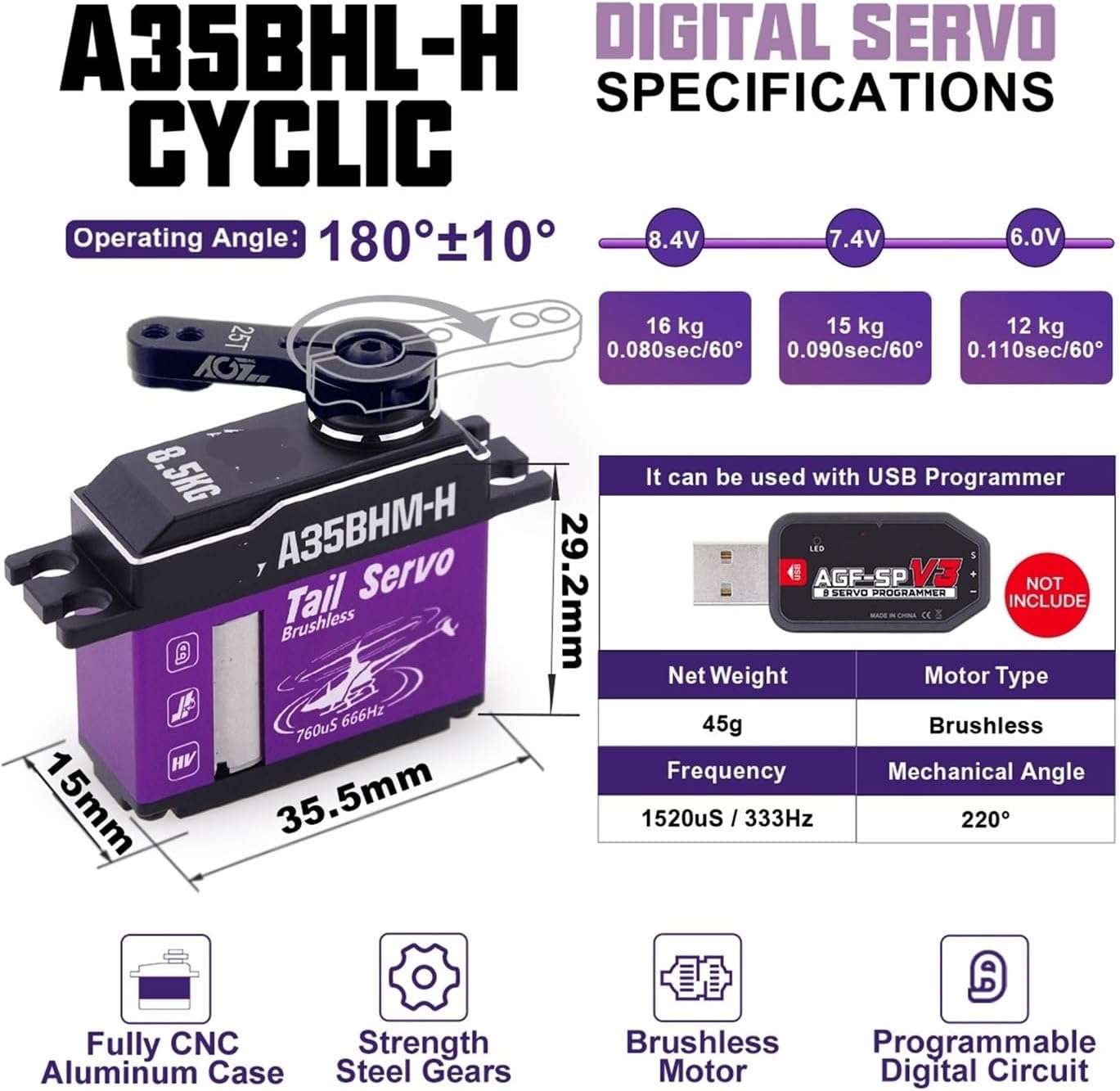

Programmable A35BHL-H A35BHM-H 16KG 18.5KG Fast High Voltage Brushless Servo Motor Suitable for 380-500 Size(A35BHM-H Tail Set1)
-
Detail
Servos
Specification
A35BHL-H Cycle
Operating voltage: 4.8-8.4 V
Operation speed: 0.110 sec/60°@6.0V
Operation speed: 0.090 sec/60°@7.4V
Operation speed: 0.080 sec/60°@8.4V
Stall Torque: 12 kg-cm (167 oz-in) @ 6.0V
Stall Torque: 15 kg-cm (208 oz-in) @ 7.4V
Stall Torque: 16 kg-cm (222 oz-in) @ 8.4V
Equipment: Steel
Motor: Brushless
Dimensions: 35.5*15*29.2 mm (1.39 x 0.59 x 1.14 in)
Weight: 45g
Connecting wire: TYU 300mm/22AWG
A35BHM-H tail (narrow strip)
Operating voltage: 4.8-8.4 V
Operation speed: 0.080 sec/60°@6.0V
Operation speed: 0.072 sec/60°@7.4V
Operation speed: 0.065 sec/60°@8.4V
Stall Torque: 6.5 kg-cm (90 oz-in) @ 6.0V
Stall Torque: 7.5 kg-cm (104 oz-in) @ 7.4V
Stall Torque: 8.5 kg-cm (118 oz-in) @ 8.4V
Equipment:
Dimensions: 35.5*15*29.2 mm (1.39 x 0.59 x 1.14 in)
Weight: 41 g
Connecting wire: TYU 300mm/22AWG -
