• Window sill depth: up to 10.9 inches (27.69 cm)
• Minimum window opening height: 16 inches (40.64 cm)
• Window width: 24 to 48 inches (60.96 to 121.92 cm) Our original design includes side panels to be installed after placing the window air conditioner. However, if your window is narrow, you can choose not to use the side panels or trim them. Based on customer feedback, this unit can be installed in a 20-inch wide window using this method.

For best results, install on walls ≤ 9.4” (23.9 cm) using the included black grommets to reduce vibration.

If your wall is close to 10.9”, remove the grommets and use additional rubber pads to fill gaps and minimize noise.

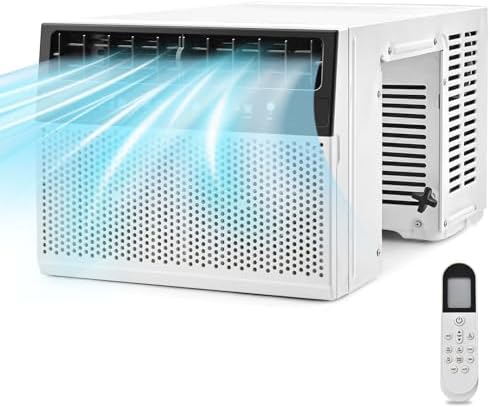

Upgrade your cooling experience with the SIMOE 12,000 BTU window air conditioner. Stay cool, stay comfortable, and enjoy the ultimate convenience. The U-shaped design of the air conditioner allows for unrestricted opening and closing of the window, ensuring a constant flow of fresh air and maximizing natural light in your bedroom.

It's a powerful unit for family use, especially for large spaces. It can cover a large space of up to 550 sq.ft, and with energy saver function, you don't need to worry about the electric bill. With an CEER of 10.9, you can expect to pay about 72CAD per year to operate this Window AC unit.

1. U-Shaped Design: The U-shaped design window ac units maintain the full view through the window, and can be opened and closed freely after installation, bringing fresh air and more natural light into your bedroom.

2. 6 in 1 Functionality: cool, dry, fan, auto, sleep and energy saver.

Cooling mode: Adjust the temperature between 62℉ and 86℉.

Fan mode: To choose from three different fan speeds to circulate air in the room.

Dry mode: Dehumidifying Capacity: 45 Pints/Day. Improving the overall air quality.

Energy saver mode: The unit intelligently adjusts the temperature and fan speed to conserve electricity.

3. Flexible wind adjustment: Swing up and down 40°, left to right 100° manually.

4. Easy to clean: Washable filter and water drainage for easy use.

5. Special Features: My Temp mode that enables the window AC to cool the area depending on the location and set temperature of the remote control.

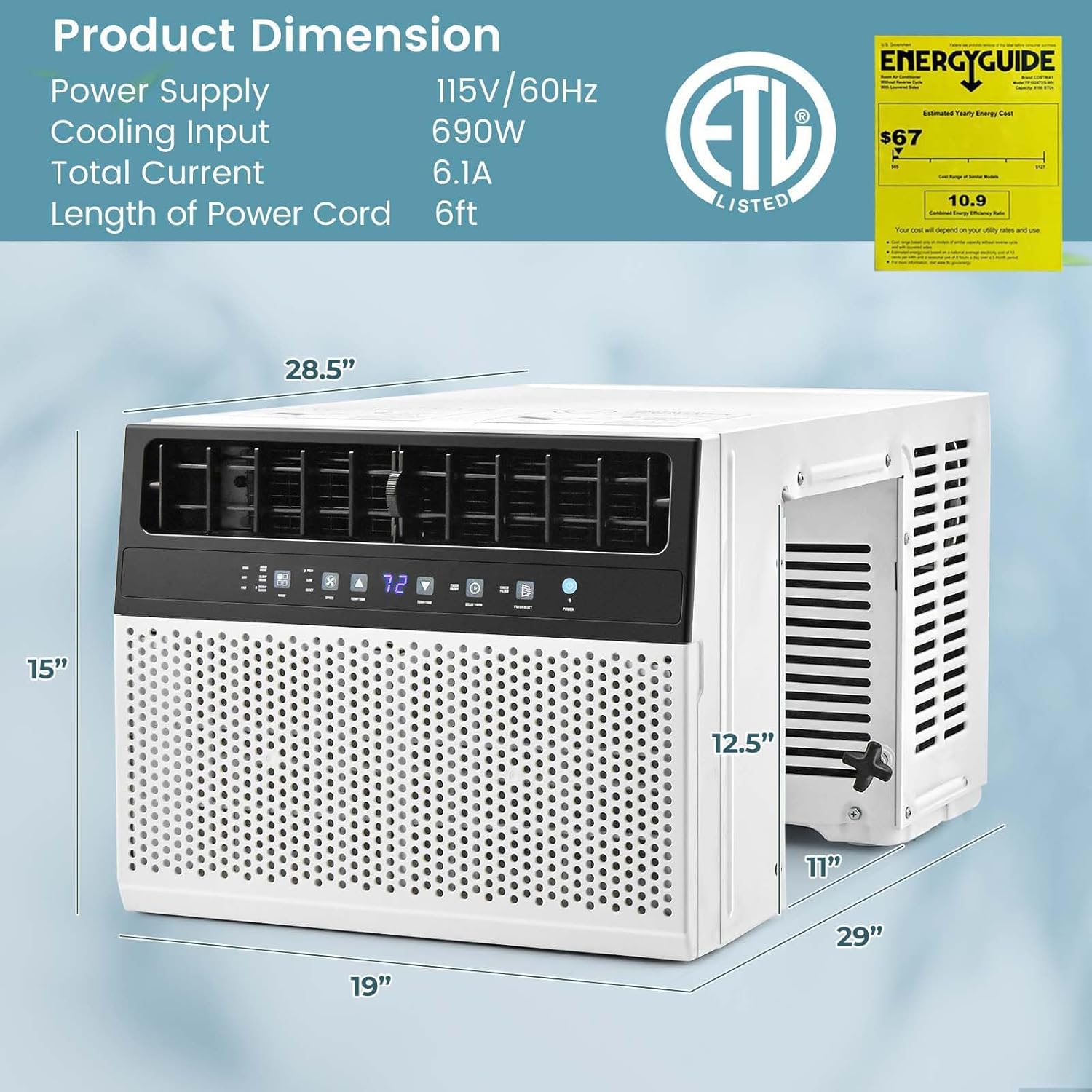

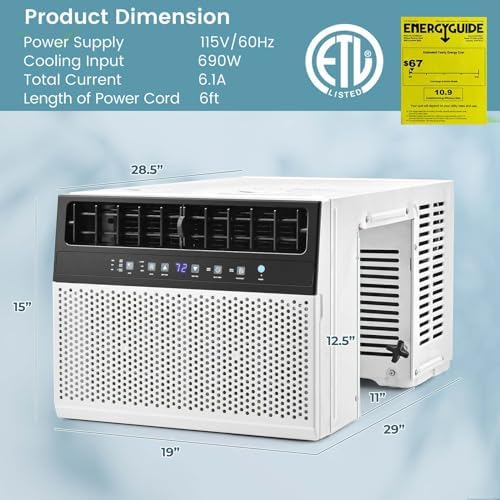

Materials:ABS, Galvanized Plate, CopperSuitable Widow Size:Width: 24-48 inches. Max depth of the sill: 10.9inches.Cooling Capacity:12,000BTU AshraeCooling Capacity:8,000BTU SACCAir Flow:415 m³/hCooling Area:550 sq.ft.Dehumidifying Capacity:55 Pints/DayTemperature Setting Range:62℉~86℉ Timer:1-24 HoursFan Speed:High/Low/QuietNoise Level:42 dBPower Supply:115V/60HzCooling Input:690WItem Dimension:29” x 14.5” x 15” (L x W x H)Net Weight:68 lbsTotal Current:6.1 A

Before You Buy – Check Window Compatibility

Wall Thickness Tip

SIMOE U-Shaped Window Air Conditioner

Features:

Specification
