A20 Brushless Motor Compatible with XP2020 Plant Protection Drone Engine Compatible with Agricultural Intelligence UAS Outer Rotor Motor

$185.72
$210.49
Quantity
ADD TO CART
BUY IT NOW
  • Detail

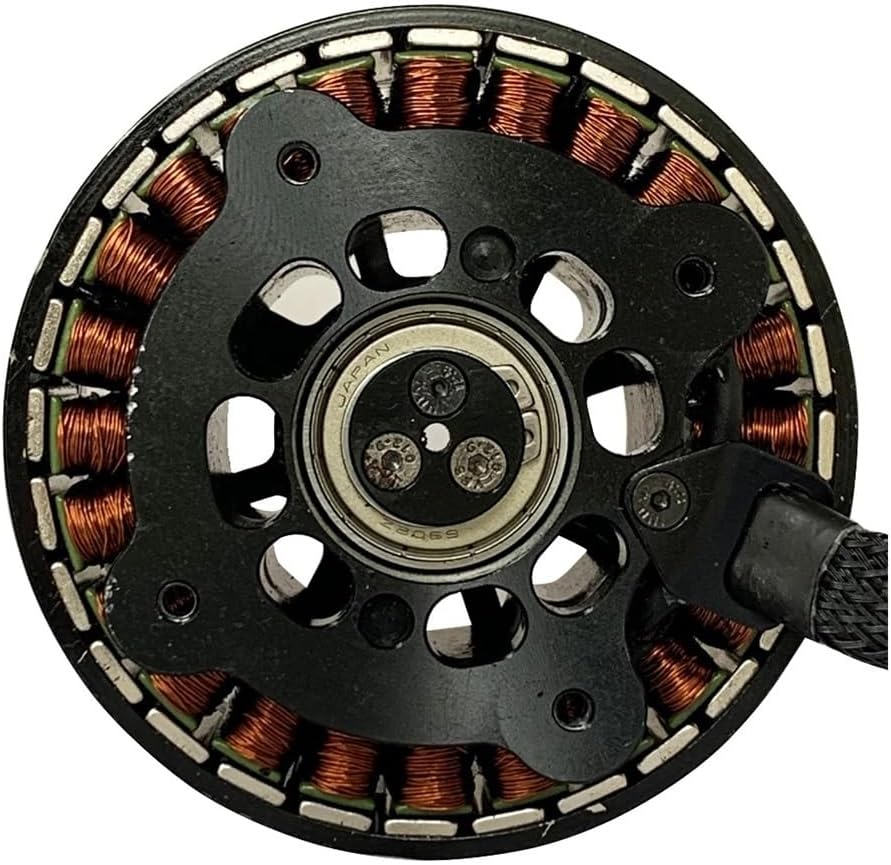

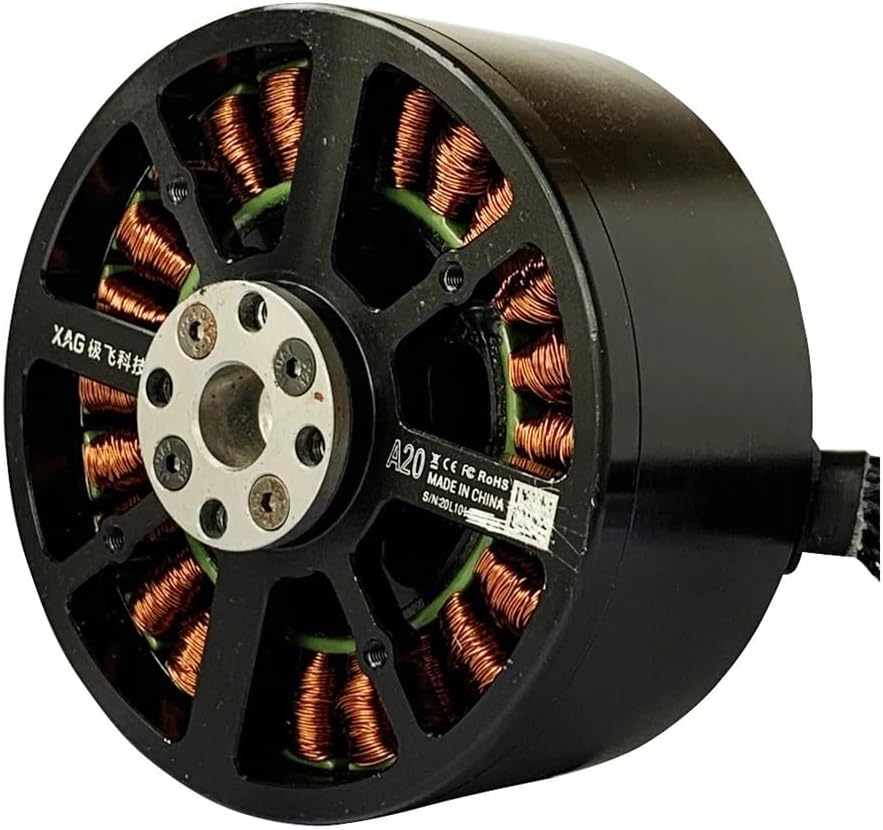

    A20 Brushless Drone Motor Compatible with Agricultural Intelligence Engine Outer Rotor Motor
    Motor Condition: All functions are operational. Tested before shipping.
    Motor Model: A20

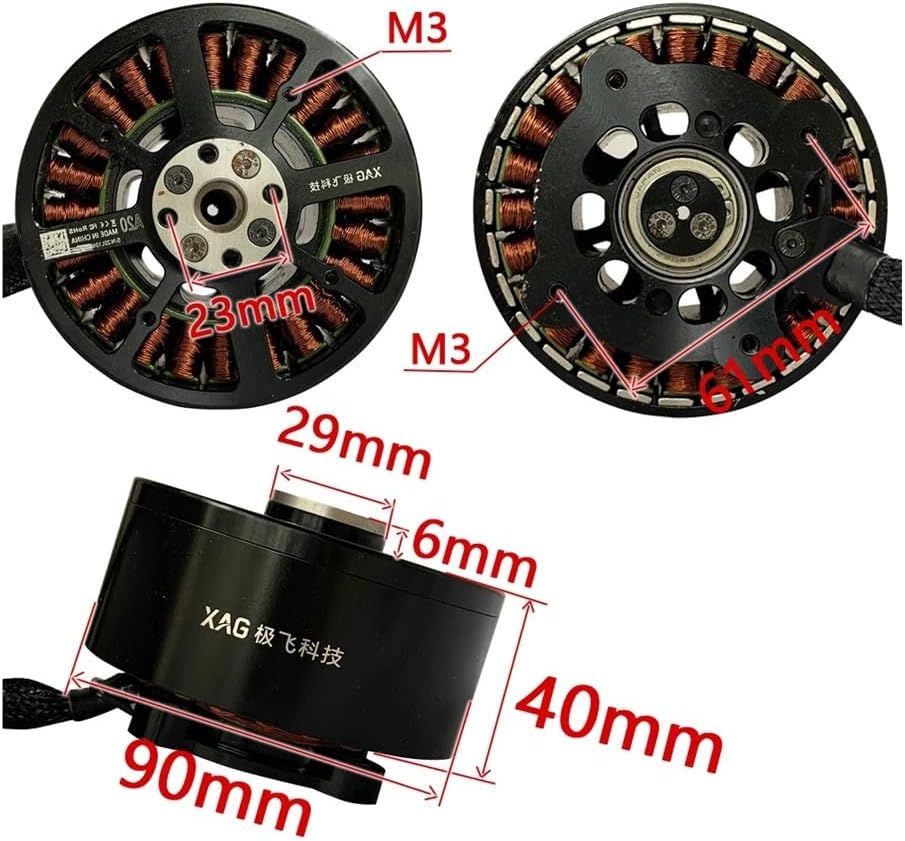

    Motor Size: 90 x 60 mm
    Motor Weight: 1110 g
    Stator Size: 80 x 30 mm
    Slots: Poles 24
    KV Value: 28, 85 speed/volt
    Maximum Pulling Force (Single Motor): 22 kg
    Rated Power (Single Motor): 1500 watts
    Applicable ESC Model: VC12100
    Maximum Continuous Working Current: 100 A
    Maximum Working Voltage: 56.5 volts (13-cell lithium polymer )
    Applicable Foldable Model: P40128
    Diameter × Pitch: 40 x 12.8 inches
    Weight of Single : 162 grams
    Total Weight: 440 grams
    XAG Four- Plant Protection Drone
    Standard Take-off Weight: 46.62 kg (including and fully loaded box)
    Maximum Effective Take-off Weight: 48 kg (near level)
    Maximum Thrust-to-Weight Ratio: 1.9
    Load Ratio: 0.43
    Recommended Power : Suitable Compatible with B13860S (when load ≤ 10 kg, compatible with B12800Q/B12620Q/B12800/B12620 )
    Packing includes: One pc A20 motor.
