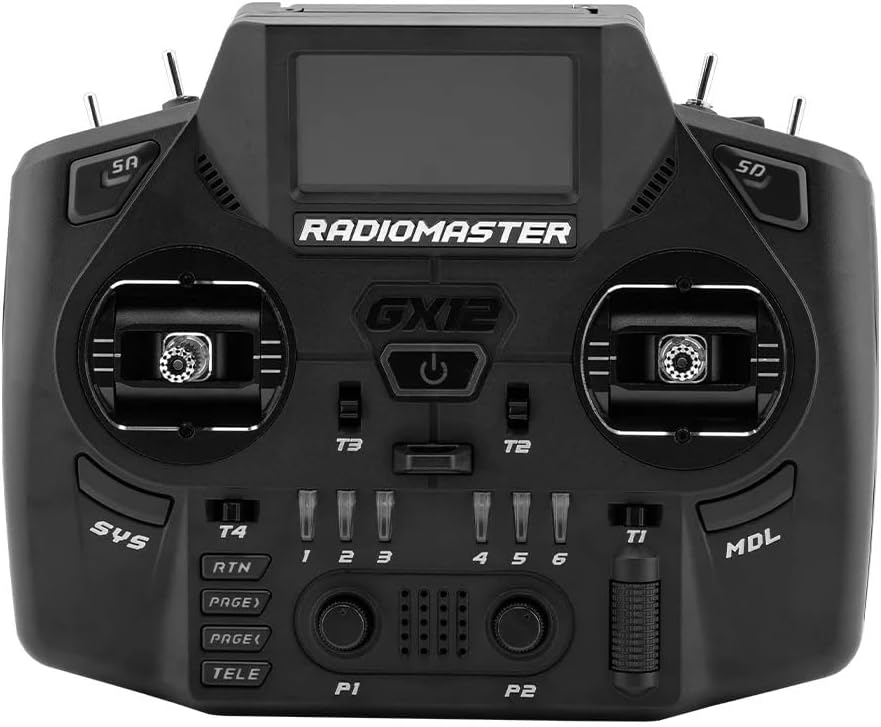

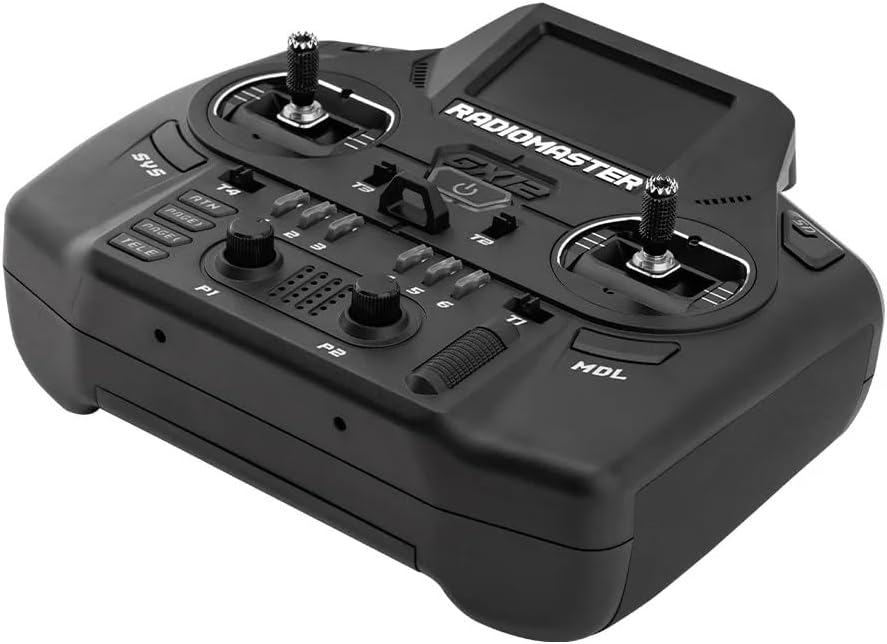

Radiomaster GX12 Dual Band Antenna Gemini XROSSBAND EXpressLRS 1000HZ 3D Digital CNC Hall Gimbal Radio Controller (GX12 ELRS M2 5000)

The RadioMaster GX12 marks a new era in innovation and technology forhigh-performance radio controllers. Designed for drone racing, FPVflying, and video work, the GX12 prioritizes signal strength andreliability, ensuring you stay connected when it matters most. Whetherfor work or play, the GX12 embodies excellence in drone control. Welcometo the future of radio controllers—elevate your RC experience with thelatest advancements in open-source technology and performance!

• Dual-Band Dual 1W Gemini Xrossband ExpressLRS Transmitters: Experience unmatched range and reliability with ExpressLRS Gemini Xrossband (Gem-X) dual-band transmission capabilities.
• Integrated Folding Dual-Band Antennas: Sleek design with foldable antennas for easy transport and storage; Compatible with both 2.4GHz and Sub-G 900MHz frequencies.
• GX01 Gimbals -Fully CNC Aluminum 3D Digital Hall Sensor Gimbals: Precision-engineered aluminum gimbals with 3D Hall sensors for superior control and durability.
• 1000Hz Digital Gimbals with EdgeTX Sync: Achieve exceptional precision and responsiveness with high-frequency digital gimbals featuring EdgeTX sync.
• Folding Gimbal Sticks: Foldable gimbal sticks for convenient storage and transport.
• Removable Switch Panels: Customize your setup with our modular switch panels, allowing for easy switch changes to suit your preferences.
• DIY SMA Ports: Enjoy flexibility in antenna installation with SMA port integration.
• OLED Display: Crisp and clear OLED with high contrast display.
• Internal Storage: 512MB of integrated high-speed flash storage—no need for TF cards!
• USB-C Connectivity: The GX12 features a single USB-Cport that manages smart balance charging, SIM connectivity,firmwareupdates and direct access to the integrated high speed flash memory.
• Integration of programmable 6-Position Switch : Individually programmable 6-position switches offer versatile control options tailored to your unique setup.
• Programmable RGB Indicators on 6-Position and SA/SD Switches: Customizable RGB lights provide visual feedback on switch status.
• Powerful Efficient Cooling System: With dual 1-watttransmitters, the GX12 boasts serious power, featuring an advancedcooling system to keep your radio cool even on the hottest days.
• PCB Nano coating: Engineered for the Extremes! The GX12is built to thrive in demanding environments. With thicker plastics anda hydrophobic PCB coating, this controller is designed to withstandhot, cold, dry, and humid conditions. Count on the GX12 to deliver, nomatter where your adventures take you!

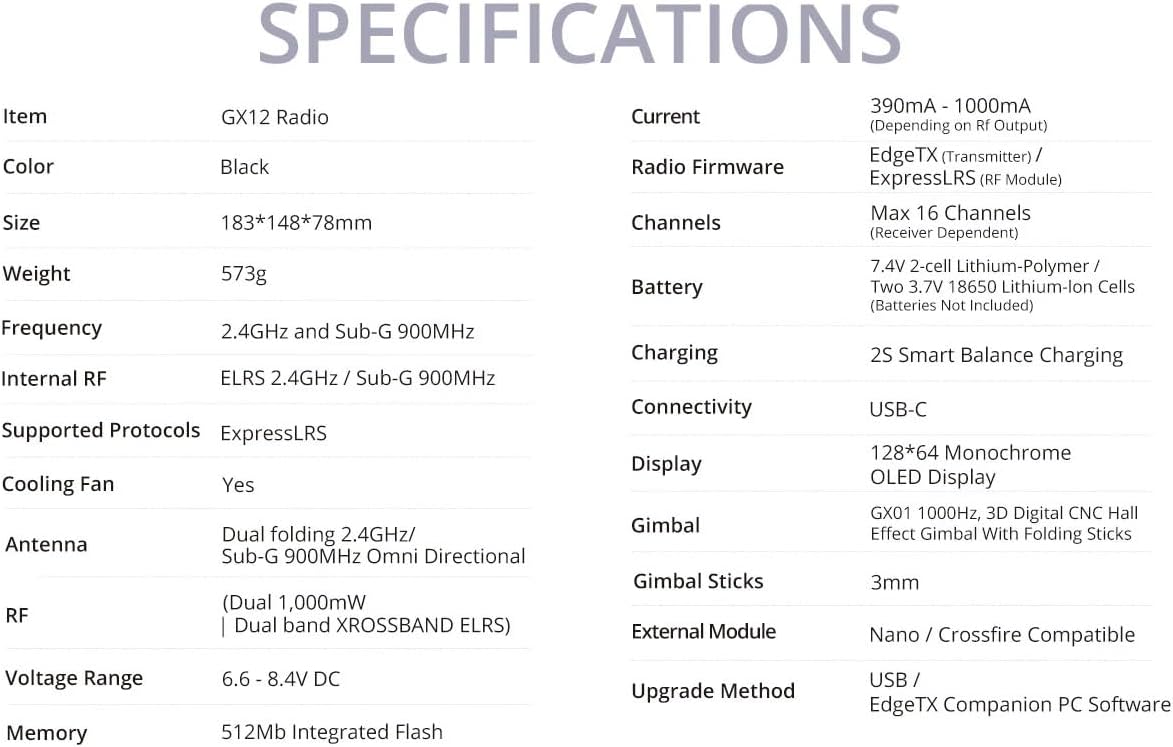

• Item: GX12 Radio
• Color: Black
• Size: 183*148*78mm
• Weight: 573g
• Frequency: 2.400GHz and Sub-G 900MHz
• Internal RF: ELRS 2.4GHz / Sub-G 900MHz
• Supported Protocols: Express-LRS
• Cooling Fan: Yes
• Antenna: Dual folding 2.4GHz/ Sub-G 900MHz Omni directional
• RF:(Dual 1,000mW | Dual band XROSSBAND ELRS)
• Voltage Range: 6.6 - 8.4V DC
• Current: 390mA - 1000mA (Depending on Rf output)
• Radio Firmware: EdgeTX (Transmitter) / ELRS (RF module)
• Channels: Max 16 channels (Receiver dependent)
• Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)

• Charging: 2S Smart Balance Charging
• Connectivity: USB-C
• Display: 128*64 Monochrome OLED display
• Gimbal: GX01 1000Hz, 3D Digital CNC Hall Effect Gimbal with folding sticks
• Gimbal Sticks: 3mm
• External Module: Nano / Crossfire compatible
• Upgrade Method: USB / EdgeTX Companion PC software
• Memory: 512Mb Integrated Flash
