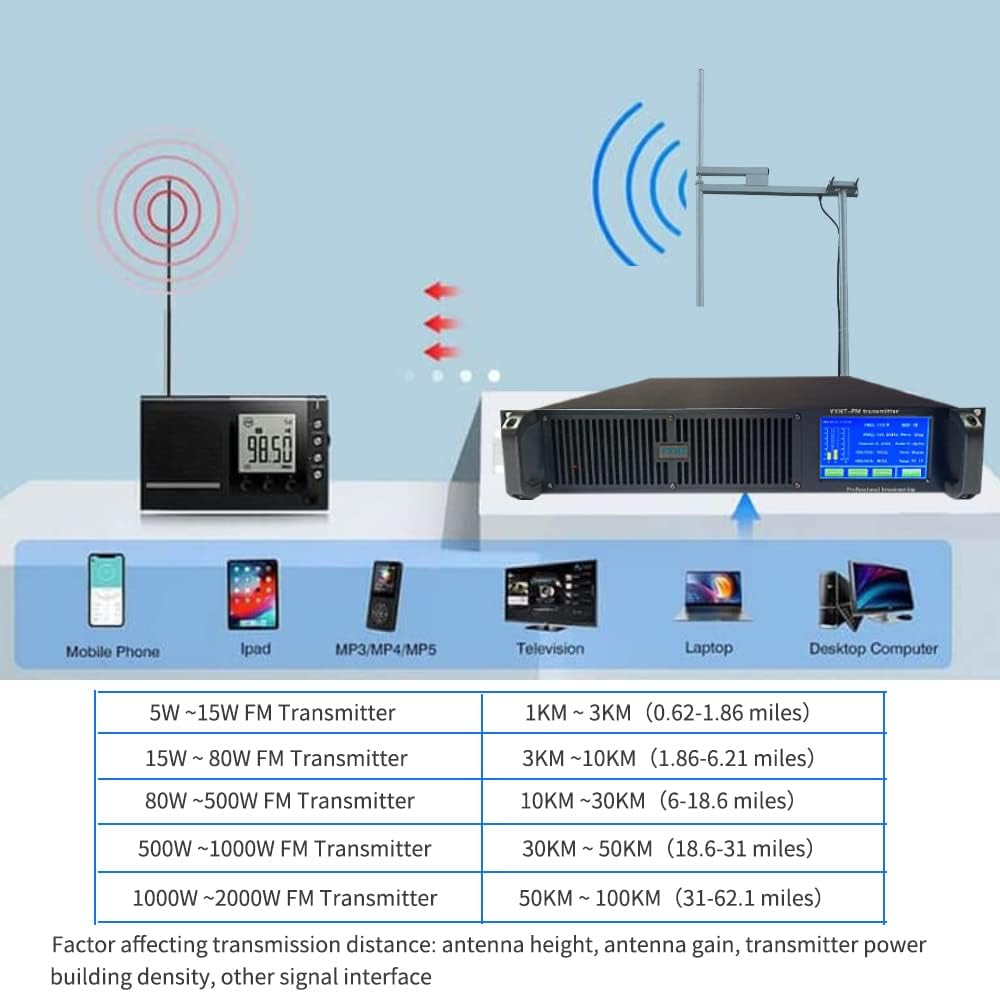

FM Stereo Transmitter 1000W+1-Bay Antenna+30M Cable, 1KW High Power Long Range Professional Touch Screen FM Radio Broadcast Transmitter Kit for Church and Radio Station

Product Description
1. Frequency Range:88.1MHz~107.9 MHz
2. Frequency Setting step:10KHz
3. Carrier Frequency precision:±200Hz
4. Residual Wave Radiation:≥65dBc
5. Audio Input Impedance:600Ω,Balance
6. Separation:60dB Pilot Signal Modulation:8%~10%
7. Audio Input Level:±10dBm,step 0.01dB
8. S/N:≥75dB(30H~15kHz,100%)
9. Audio Harmonic Distortion:<0.05%
10. Audio response: ±0.05dB(30Hz~15KHz)
11. Output Load Impedance:50Ω
12. Output Power:0-1000W
13. Pre-emphasis:0μS,50μS,75μS
14. Deviation:±75kHz
15. Pilot Frequency: 19 kHz±1Hz
16. Sub-carrier Suppression:≥65dB
17.RF Output Connector:7/16'(female)or7/8'Flange
18.Size:460mm*480mm*88mm
19.Weight: 15KG

Product Features
The DSP(Digital Sound Processing) technology makes the YXHT- 1000W FM transmitter an enjoyable sound broadcasting device for all music lovers, you’ll no longer be bothered by the noises or distortions. As quality assurance, YXHT Provides 6 YEAR warranty for this professional broadcast transmitter, you’ll have no worries to use it for the radio station.

Application
FREQUENTLY APPLICABLE USES:
1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations

Package include
Transmitter, 1-bay antenna, 30M cable, audio line, power line
