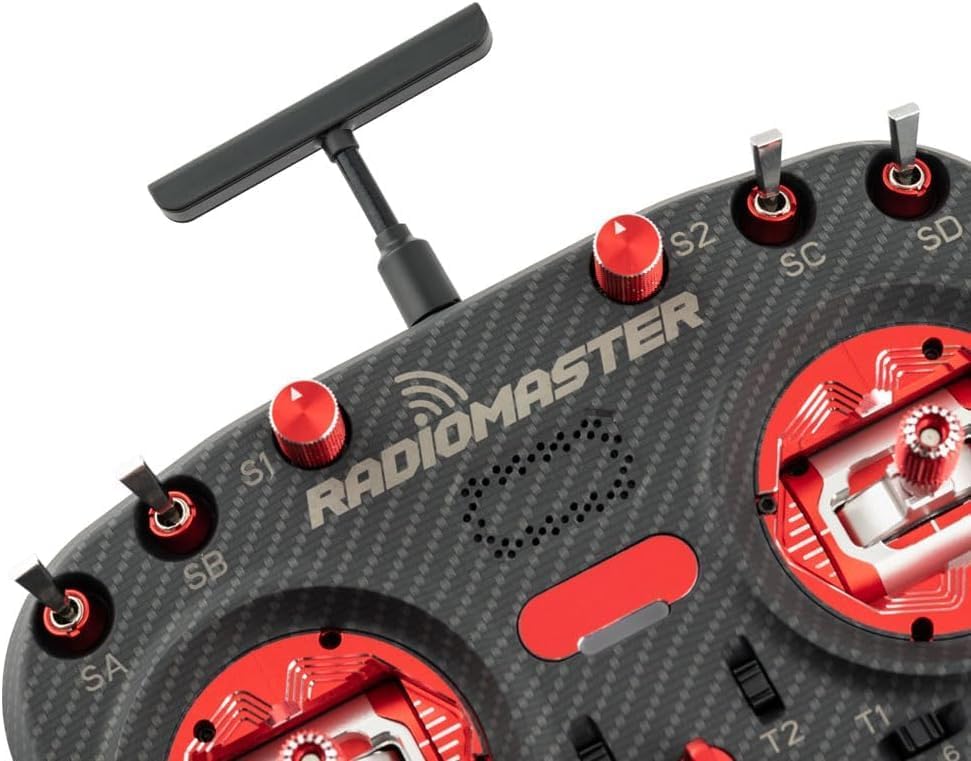

Radiomaster Boxer Max Version with CNC AG01 Hall Gimbals Carbon Fiber 2.4G 16ch Transmitter Remote Control ExpressLRS Mode 2 (Boxer Max Elrs-red)

Introducing the Boxer Max Radio - a high-performance remote control witha sleek carbon fiber-patterned case. The Boxer Max comes standard withupgraded billet aluminum AG01 hall effect gimbals and CNC buttons androller, ensuring a high-quality feel. The adjustable-length CNC metalfolding handle and upgraded leather grips provide a comfortable grip forextended use. With all these features, the Boxer Max Radio is theperfect choice for those seeking superior performance, comfort, and apremium feel.

• CNC Aluminum AG01 Hall-effect Gimbal
• Adjustable length CNC metal folding stand
• Available with built-in ExpressLRS Backpack
• Featuring a powerful STM32F407VGT6 with 1MB Flash and 192KB RAM
• Preinstalled EdgeTX firmware
• Internal ELRS module capable of 1,000Hz refresh rate
• Adjustable ELRS RF output
• QC3.0 fast charging support 2.0A MAX
• New low-profile latching SE switch and momentary SF switch
• Oversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)
• Standard JR module compartment
• Internal module cooling fan built in (ELRS version)
• Versatile 6-position switch for flight mode access
• Adjustable and Removable T-shape Antenna
• Redesigned SD card slot with new and improved 512mb pre-loaded SD card included

• Color: Black/Red/Gold
• Size: 235*178*77mm
• Weight: 532.5g
• Frequency: 2.400GHz-2.480GHz
• Internal RF: ELRS 2.4GHz
• Supported protocols: Module dependent
• Cooling fan: Built in (ELRS version)
• Voltage Range: 6.6-8.4V DC
• Radio Firmware: EdgeTX (Transmitter) / ELRS (RF module)
• Channels: Max 16 channels (Receiver dependent)
• Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
• Display: 128*64 Monochrome LCD display
• Gimbal: AG01 CNC Hall Gimbal
• External module: JR / FrSKY / Crossfire compatible
• Upgrade Method: USB / SD card & EdgeTX Companion PC software

• 1 * BOXER Max Radio
• 1 * Signature Carry Case
• 1 * T Antenna
• 1 * USB-C Cable
• 1 * Gimbal Protector
• 1 * 1.5mm Allen Key
• 2 * M4*4 Screws
• 4 * Low Tension Springs
• 1 * Stickers
• 1 * Manual
• 1 * 18650 Battery tray (Batteries not included)
• 1 * RadioMaster Neck Strap
• 1 * Boxer KeyChain
• 1 * Screen Protector
