1HVAC 2 Ton 15.2 SEER2 Central Heat Pump Split System with Free Thermostat and 5K Backup Heat Kit - R32 Single Stage (AC/Heating System) | 24000 BTU

CERTIFIED ACiQ SELLERS: Everything you need for reliable HVAC solutions!
HEAT PUMP CONDENSER: Offers efficient heating and central air conditioner unit, ensuring year-round comfort. Its simple installation and energy-saving design make it a cost-effective, hassle-free choice.
AIR HANDLER: Feat
$182.83
$5532.8
Quantity
ADD TO CART
BUY IT NOW
  • Detail

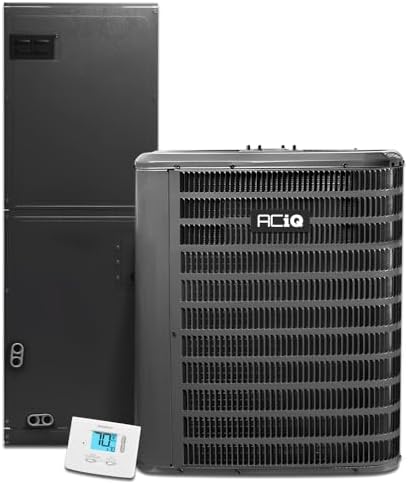

    1HVAC 15.2 SEER2 HEAT PUMP CONDENSER AND AIR HANDLER

    Perfect for homeowners seeking year-round comfort at a great value, this central heat pump and air handler combine advanced technology, energy-saving features, and flexible installation to deliver efficient, all-electric heating and cooling.

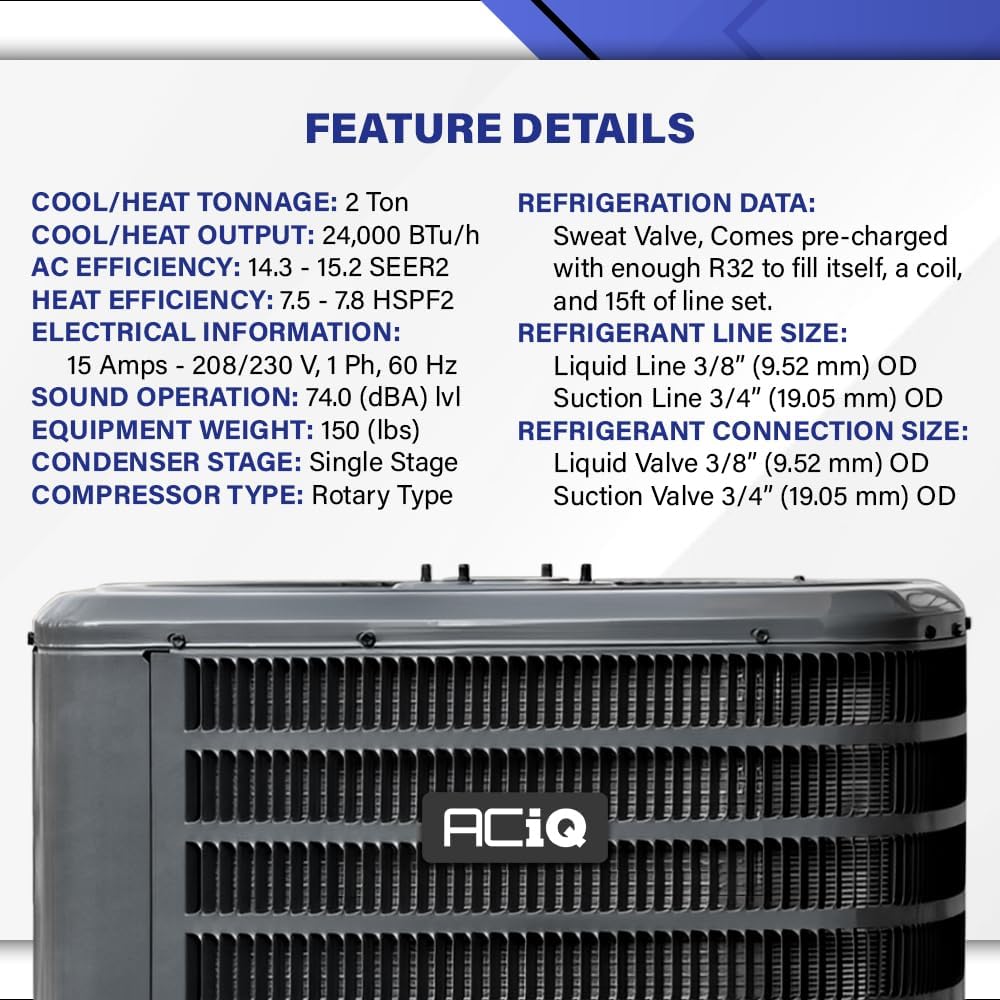

    HEAT PUMP SPECIFICATION

  • Cooling and Heating Capacity: 24,000 BTU/h
  • Sound Level: 74 dBA quieter than other condensers
  • Weight: 165 lbs securely packed for delivery

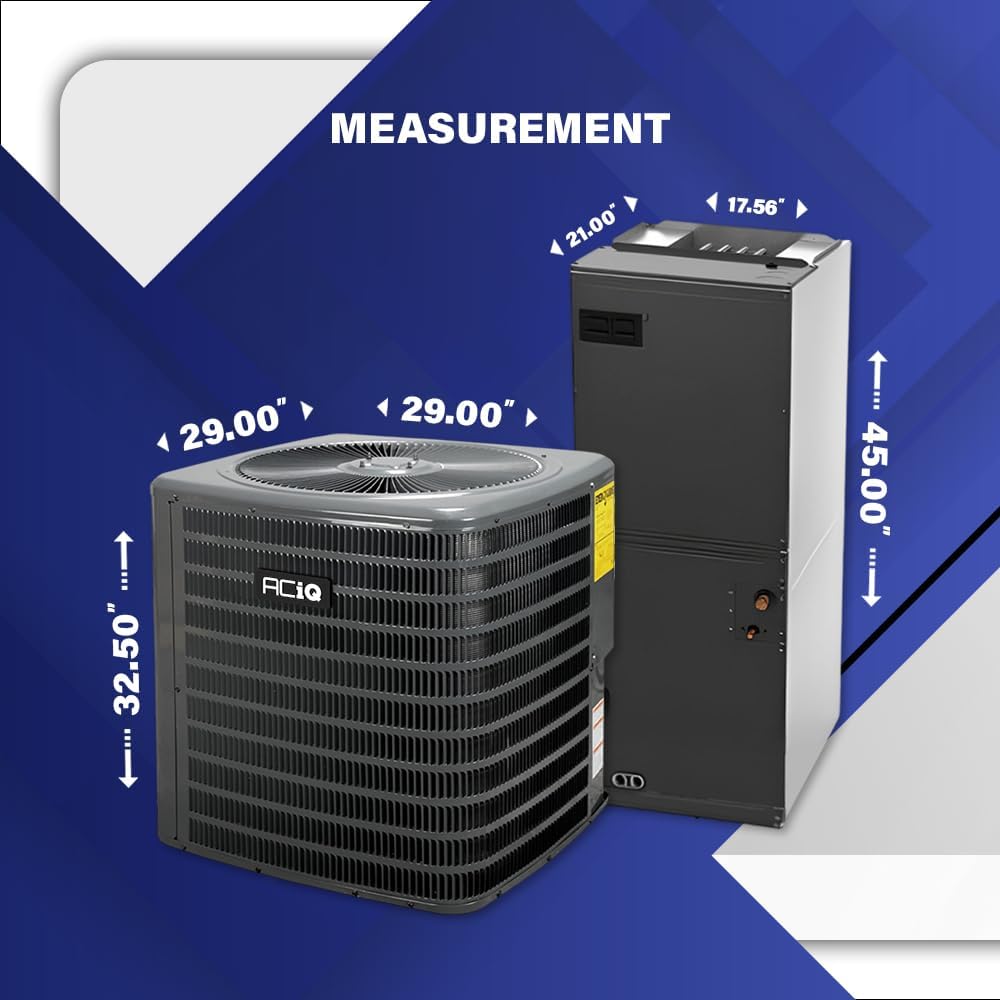

  • Unit Size: H: 32.5" x W: 29.0" x D: 29.0"
  • Compressor Power
    • RLA: 8.2 ensuring efficient operation
    • LRA: 41.2 for strong startup performance
    • Type: Single-stage Rotary for reliable
    • Condenser Motor
      • Horsepower: 1/6 HP designed for energy efficiency
      • Motor Type: PSC type for consistent airflow
      • FLA: 0.95 for low power consumption
      • R-32 Refrigerant
        • Liquid Line: 3/8" for optimal refrigerant flow
        • Suction Line: 3/4" to support system efficiency
        • Valve Type: Sweat for secure installation
        • Charge: 70oz pre-charged line set
        • Electrical Data
          • Voltage Phase: 208/230-1 standard home power
          • Min Ampacity: 11.2A for safe operation
          • Max Ampacity: 15.0A to prevent overload
          • Min/Max Volts: 197/253 allowing voltage flexibility
          • Electrical Conduit: 1/2" or 3/4" for easy installation

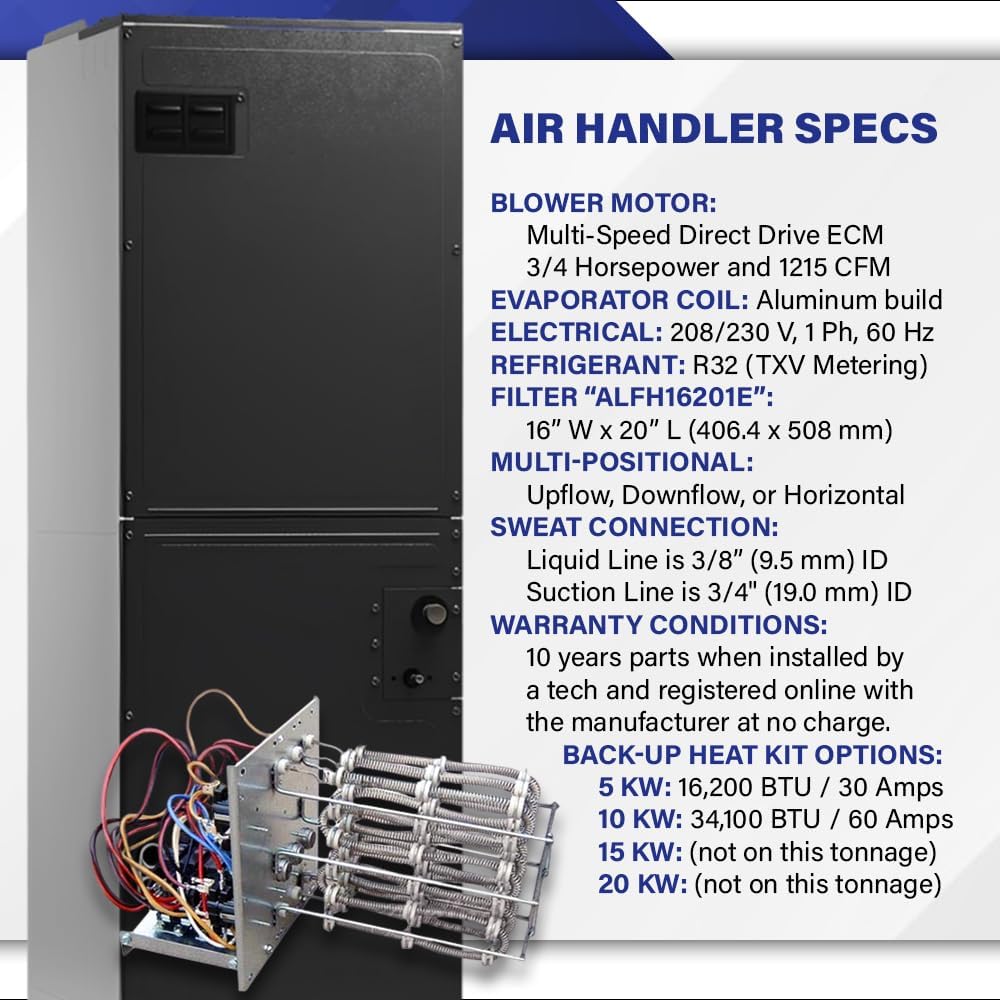

            • AIR HANDLER SPECIFICATION

          • Cooling and Heating Capacity: 24,000 BTU/h
          • Blower Fan Size: 10" diameter / 6" width
          • Weight: 112 lbs securely packed for delivery
          • Unit Size: H: 45.0" x W: 17.5" x D: 21.0"
          • Electrical Data
            • Voltage Phase: 208/230-1 standard home power
            • Min Ampacity: 5.8A for safe operation
            • Max Ampacity: 15.0A to prevent overload
            • Min/Max VAC: 197/253 allowing voltage flexibility


              • Enhance your home's comfort with 1HVAC, a trusted and cost-effective choice that delivers reliable performance and energy-efficient heating and cooling year-round.
