SIMOE 36K BTU ODU Tri 3 Zone Mini Split Air Conditioner, 12,000 + 12,000 + 18,000BTU, 23 SEER2 208-230V Cools Up to 2100 Sq.Ft, Wifi Enabled Mini Split AC with 3.5 Ton Heat Pump Pre-Charged

Description

SIMOE Multi-Zone Mini Split AC —— Energy-Efficient, Smart-Connected, All-Season Comfort！

Our multi-zone mini split air conditioners offer flexible configurations featuring 18K, 30K, and 36K BTU outdoor units paired with 7K, 9K, 12K, 18K, or 24K BTU indoor units – including versatile 1-on-2, 1-on-3, and 1-on-4 combinations to perfectly match your space requirements. Design a tailored system for any space – bedrooms, offices, or entire homes! Featuring cutting-edge DC inverter technology with 23 SEER2 efficiency, our systems use 50% less energy than standard 16 SEER2 models while delivering powerful performance, all backed by ENERGY STAR certification for guaranteed savings. Even extreme winters are no challenge—our units reliably operate in temperatures as low as -25°F. Enjoy smart, convenient control through Wi-Fi connectivity and voice commands via Alexa or Google Assistant, with multiple modes including Auto, Cool, Heat, Dry, Fan, and Sleep for personalized comfort. Additional premium features like self-cleaning, ultra-quiet operation (as low as 32dB), and extended warranty coverage ensure worry-free ownership. Whether you need targeted cooling for a single room or whole-home temperature management, our systems combine unbeatable efficiency, advanced technology, and customizable solutions—all at an affordable price.

Upgrade your comfort today and experience the perfect balance of performance and savings!

Feature

Independent Precise Temperature Control: 36,000 BTU outdoor unit paired with 3 indoor units (12K+12K+18K BTU) for independent temperature adjustment in each room.

Large-Area Efficient Coverage: 36K BTU total capacity fits up to 2,100 sq.ft., with precise zoned temperature control.

Smart Connected Control: WiFi-enabled with Alexa/Google Assistant compatibility for voice and remote operation.

Extreme Temperature Operation: Bottom heating technology ensures stable performance at -13°F/-25°C.

23 SEER2 Ultra-Efficient Energy Saving: ENERGY STAR certified, saving 50% more energy than traditional models, with dual ETL & AHRI certifications for reliability.

6 Modes & 5 Fan Speeds: Includes Auto/Cool/Dry/Heat/Fan/Sleep modes with 5-speed fan adjustment for flexible comfort.

All-Scenario Smart Functions: Features auto-defrost, self-cleaning, iFEEL temperature sensing, 24H timer, ECO mode, and Health mode.

Wide Temperature Range: 60-90°F adjustment suits bedrooms, offices, restaurants, and diverse scenarios.

Extended Warranty Service: 5-year full unit + 7-year compressor warranty with 24/7 after-sales support.

Professional Installation Kit: Includes complete installation kit, requiring licensed HVAC technician installation.

Specifications

Color: White

Material: Metal, Aluminum, Plastic

Cooling BTU: 12K BTU + 12K BTU +17K BTU

Heating BTU: 12K BTU + 12K BTU +17K BTU

Application Area: 2100 sq. Ft

Outside Unit Dimensions: 41.2" x 17.9" x 31.8"/104.6 x 45.5 x 80.8 cm (L x W x H)

Inside unit dimensions (12K):34.5" x 11.7" x 7.6"/87.6 x 29.8 x 19.4 cm (L x W x H)

Inside unit dimensions (18K): 38.8" x 12.4" x 8.9"/98.6 x 31.5 x 22.5 cm (L x W x H)

Multi Zone Combination: 3

Power Supply: 208-230V~60Hz/1PH

Temperature Setting Range: 60℉~90℉/ 16℃~32℃

Capacity: 3.5 Tons

HSPF2/SEER2: 10/23

Dehumidifying Capacity (12K): 51 Pints/Day (24 L/Day)

Dehumidifying Capacity (18K): 81 Pints/Day (38.4 L/Day)

Indoor Unit Noise Level (12K): 32 dB

Indoor Unit Noise Level (18K): 35 dB

Self Timer Duration: 24 hours

Outdoor Air flow (Max) CFM: 2353

Indoor Net weight: 19.8/19.8/26.5 lbs

Outdoor Net weight: 154.3 lbs

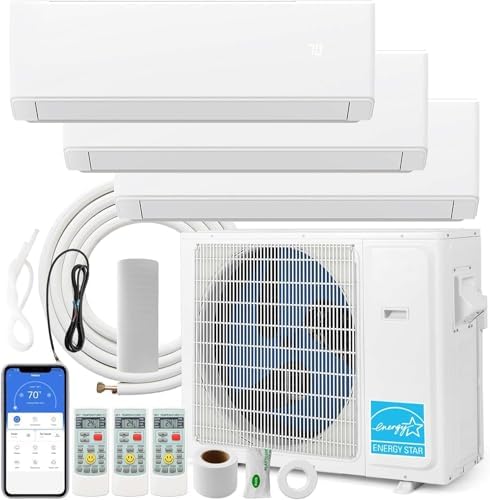

Package Includes

1 x Outdoor Unit

3 x Indoor Unit

3 x Communication Wire

3 x Copper Connection Pipe (Air + Liquid)

3 x Drain Hose

3 x Remote Control

3 x Mounting Plate

3 x Wall Sleeve

6 x Wall Cap

3 x Screw Kit

6 x Putty

6 x Tape

4 x User Guide
