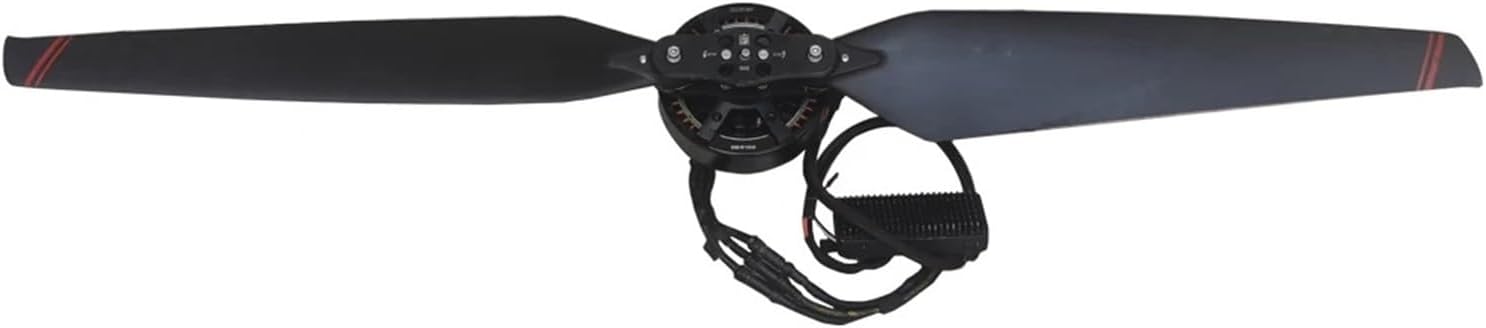

A40 brushless Outer Rotor Motor with Strong Power of 75KV
-
Detail
Servos
See picture, test voltage: 18V
Motor model: A40
Motor size: 145*48mm
Motor weight: 1710g
Stator size: 136×24 mm
Number of slots:number of rods=24:28
KV value: 75 rpm/V
Maximum pulling force (single motor): 42 kg
Rated power (single motor): 3000 watts
Applicable ESC models: VC131100/VC13180
Maximum continuous operating current: 100A
Maximum operating voltage: 56.5V (13-cell polymer battery)
Applicable folding propeller model: P4718
Diameter × spacing: 47 × 18 inches
XAG quadcopter agricultural drone
Standard take-off weight: 80 kg (including battery and fully loaded operating box)
Maximum effective take-off weight: 88 kg (near sea level)
Maximum thrust-to-weight ratio: 1.8
Load ratio: 0.45
6. A motor base
or not: No battery
Is it battery/power supply: No
Is it a charger/adapter: No
Does it include batteries: No
Model: A40W
Material: Metal -
