NB4+ Transmitter, 2.4GHz AFHDS 3 Protocol Remote Controller with 3.5 Inch IPS and USB Simulator, for RC Car Boat
-
Detail
Specification:
Material: Plastic
Product Name: NB4+ Transmitter
Adaptive Receivers: FGr4S and other AFHDS 3 receivers
Adaptive : Car or Boat
Number of Channels: 8
RF: 2.4GHz ISM
Maximum Power: Low Voltage Alarm: < 3.65V
Data Output:
Charging Jack:
Antenna Type: External single antenna
Display: 3.5-inch 320*480 color IPS
Resolution: 4096
Input Power: 1S (4.2V)*4300mAh Battery (included)+3450mA Battery (built-in)
Distance: >300m (Ground distance without interference)
Online Update: Yes
Temperature Range: -10° C~+60° C
Humidity Range: 20%~95%
Size: 131.41*115.95*190.56mm/5.17*4.56*7.5in

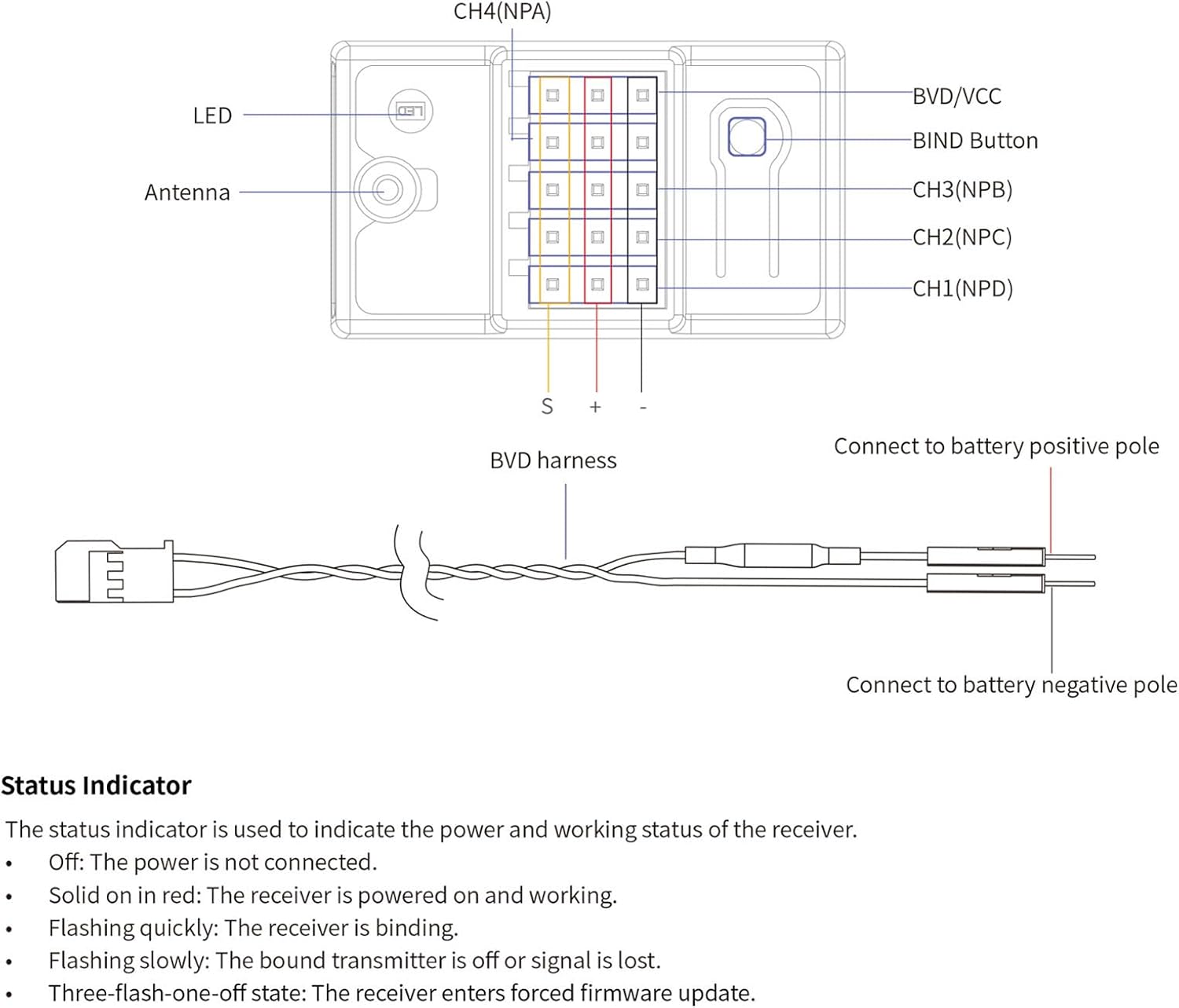

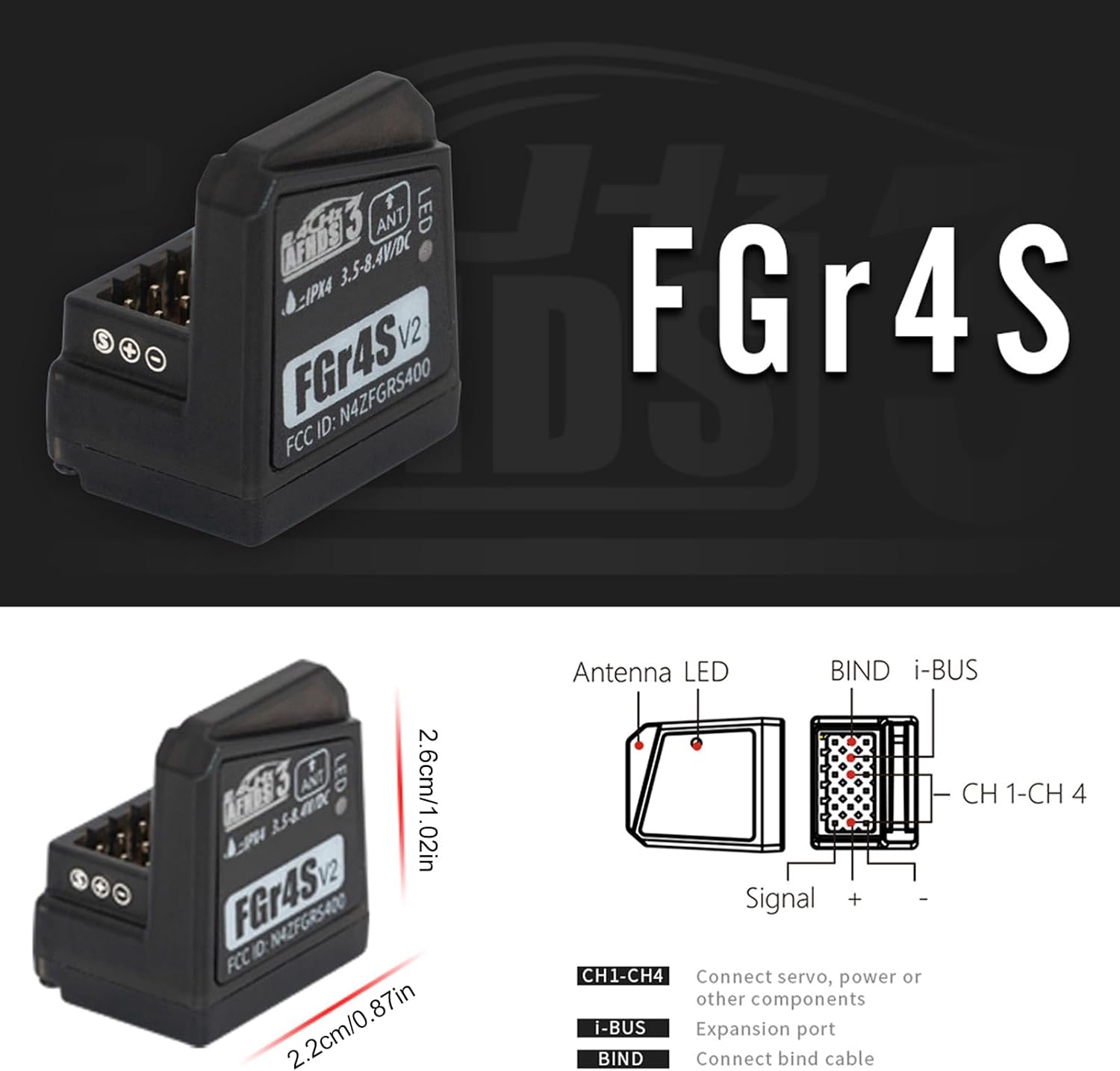

Product Model: FGr4S
PWM Channel: 4
Wireless Frequency: 2.4GHz
Wireless Protocol: AFHDS 3
Antenna Type: Built-in single antenna
Power: 3.5-8.4V
Data Port: PWM / PPM / i.bus/S.BUS
Temperature Range: -10 ℃-+ 60 ℃
Humidity Range: 20% -95%
Transmission Power: Working Current: 25mA/5V
Display: LED Indicator
Online Update: Yes
Size: 27*23*18cm/1.02*0.87*0.68in
Package Size: Approx. 25*23*9cm/9.84*9.06*3.54in
Package Weight: 1180g/2.6lb
How to Use:
By switching the existing in your remote control car or boat to the FGr4S , the NB4+ transmitter will be able to control the vehicle.

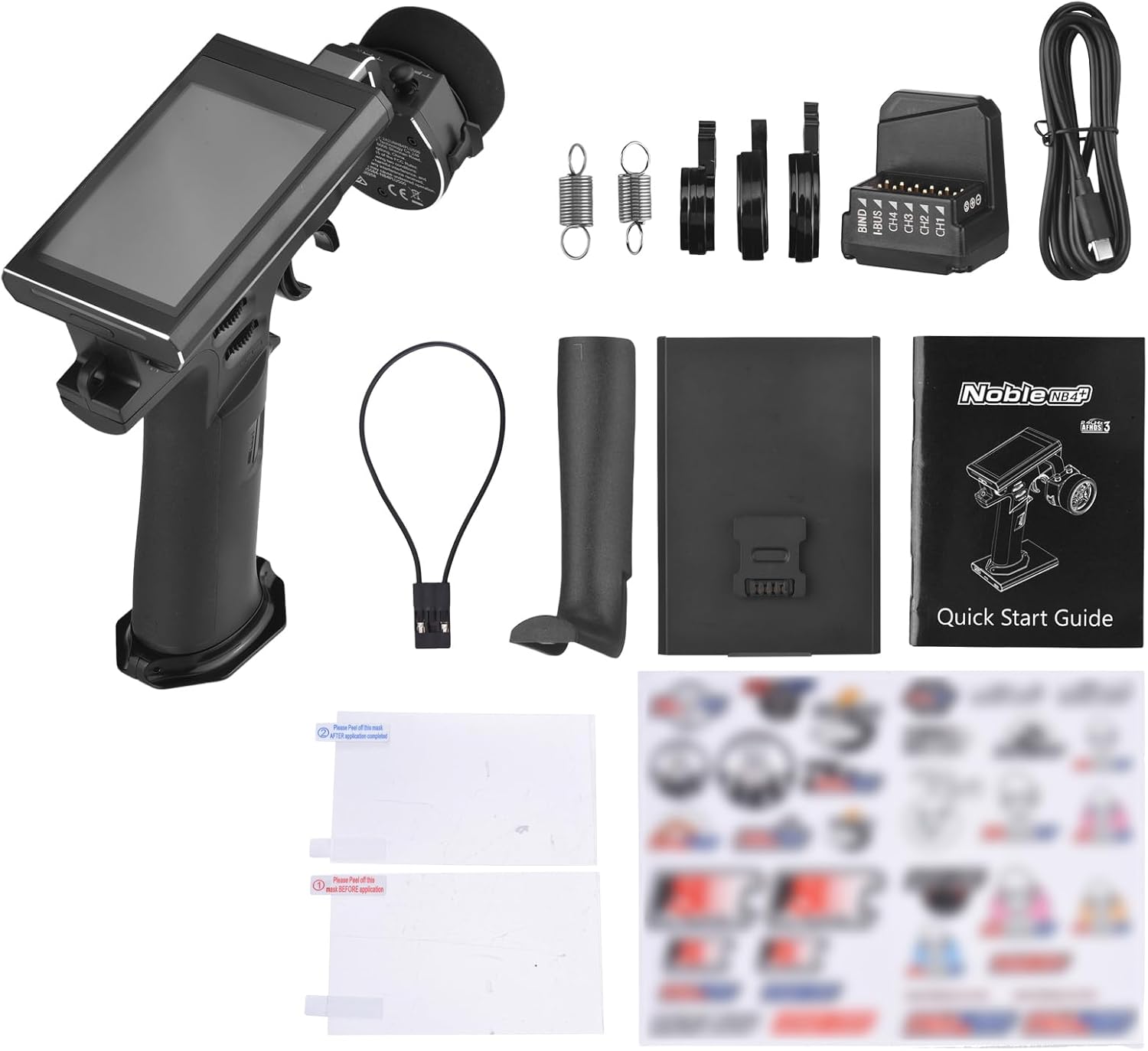

PackageList:
1 x NB4+ Transmitter
1 x FGR4S
1 x USB Cable
1 x Overgrip
3 x Actuator
2 x Spring
1 x Sticker
2 x Screen Protector
1 x Wire Harness
1 x User Manual
1 x Transmitter Base Battery -
