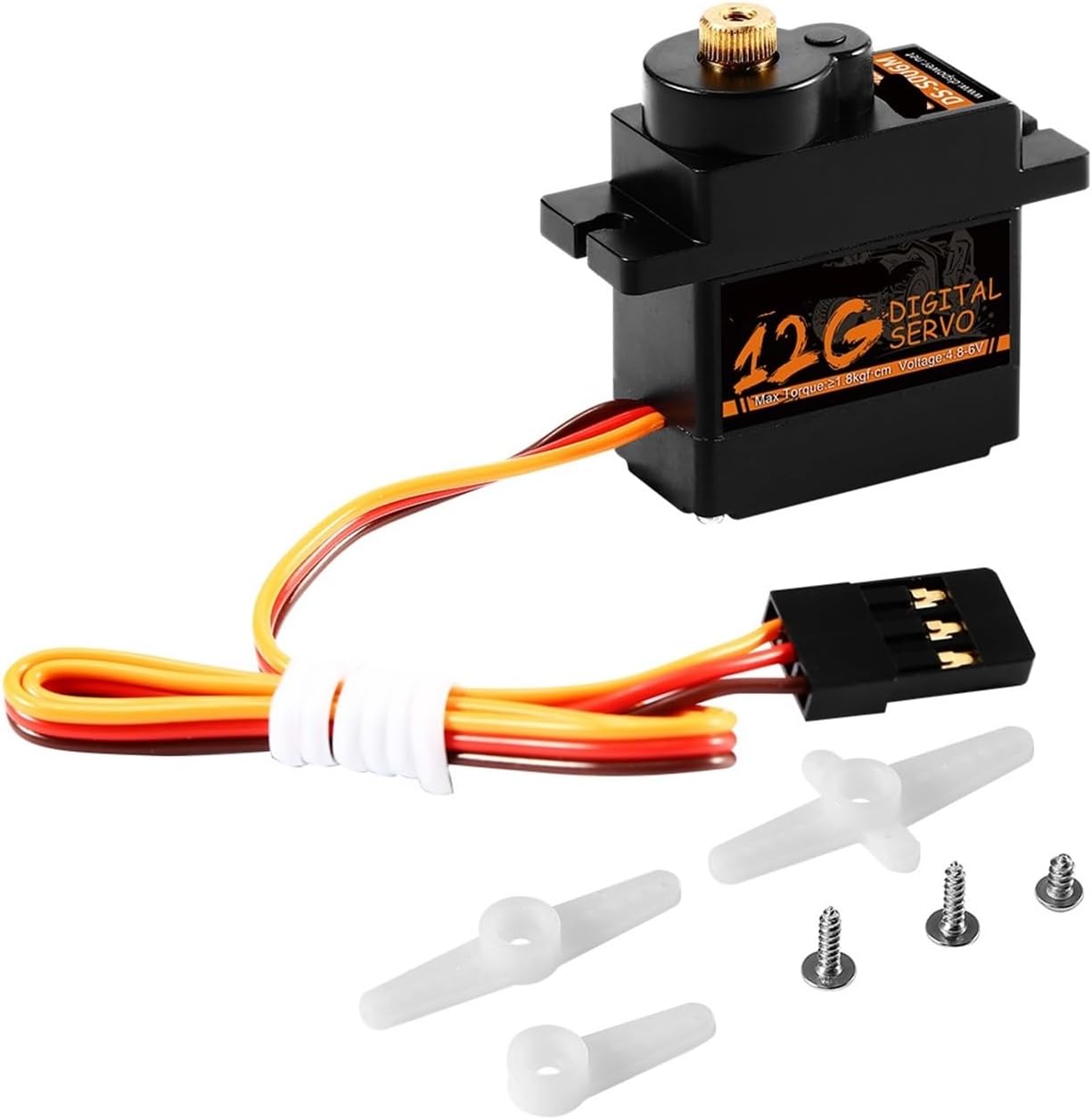

1/5/10/20 Pcs 9g 12g Mini Servo Metal Gear Servo for 450(20Pcs)
1/5/10/20 Pcs 9g 12g Mini Servo Metal Gear Servo for 450(20Pcs)
$262.3
Quantity
-
Detail
Servos
Specification:
Product Name: S006M
Quantity: 1/5/10/20 pieces
Working voltage: 4.8~6.0V DC
Maximum torque: 4.8V1.30kgf.cm; 6.0V1.50kgf.cm
No-load speed: 4.8V0.13s/60°; 6.0V0.11s/60°
Stalled rotor current: 4.8V700mA; 6.0V800mA
Current consumption* (no load): 4.8V 150mA; 6.0V170mA
Maximum action travel angle: 180°±10°(1000~2000s)
Dead zone width: 3us
Mechanical limit angle: 360°
Communication interface: PWM
Motor type: Iron core motor
Case material: ABS

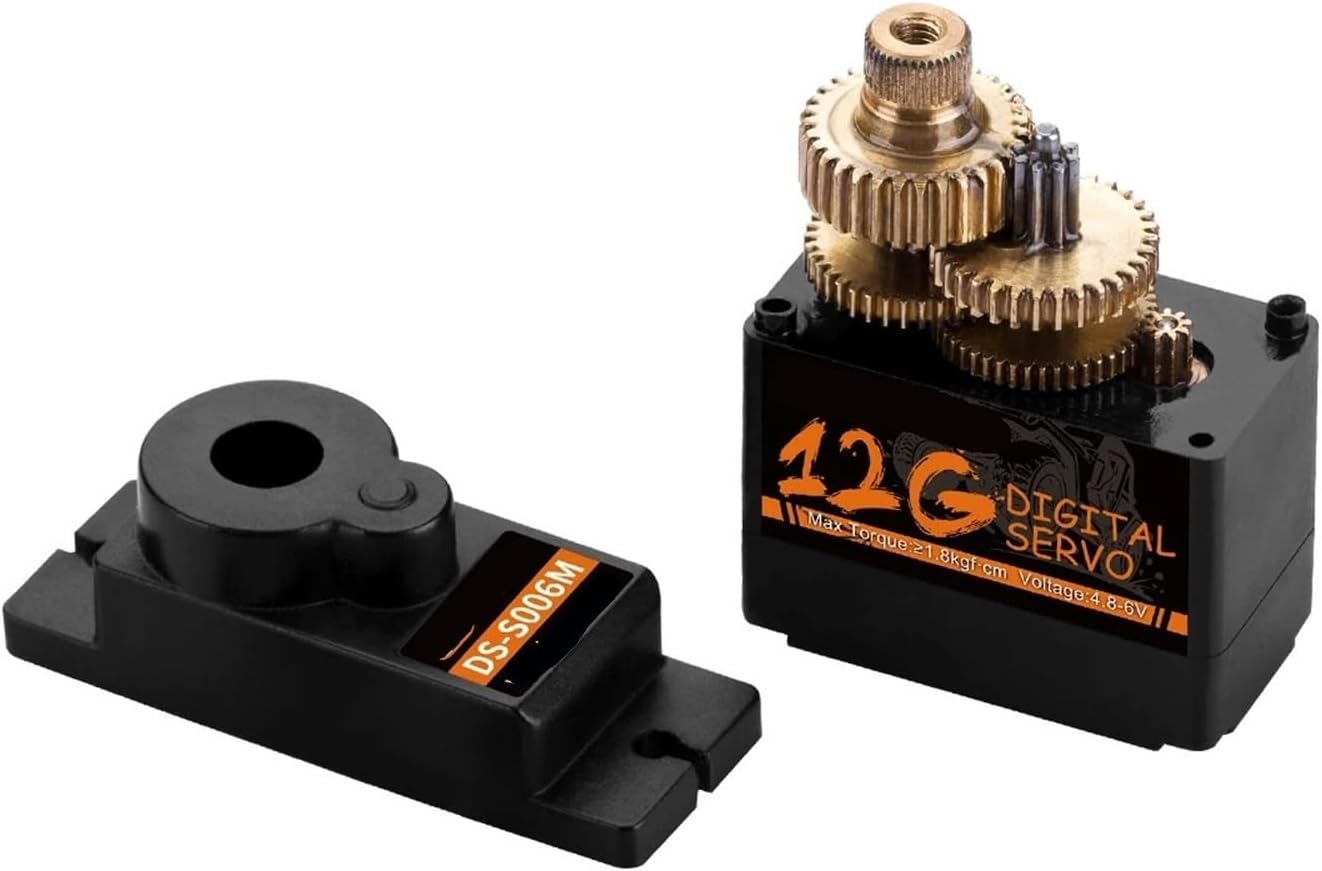

Gear set material: metal gear
Weight: 13.5 g
Dimensions: 27.3×12×23mm
Connector cable length: JR 250±5mm
Package Included:
1/5/10/20pcs* 12G digital servos
1/5/10/20 pcs* Servo Arm Accessories -
